Nissan Rogue Service Manual: Thermostat and water control valve

Exploded View

Exploded View

  1. Water inlet
  2.  Thermostat
  3.  Rubber ring
  1.  To radiator hose (lower)

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

Removal and Installation

WARNING: Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down and turning it all the way.

REMOVAL

  1.  Drain engine coolant from the radiator. Refer to CO-8, "Draining".

CAUTION:

  1.  Remove engine under cover. Refer to EXT-37, "ENGINE UNDER COVER : Removal and Installation".
  2.  Remove radiator hose (lower) from the water inlet side.
  3.  Remove exhaust manifold heat shield. Refer to EM-29, "Exploded View".
  4.  Remove water inlet and thermostat.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

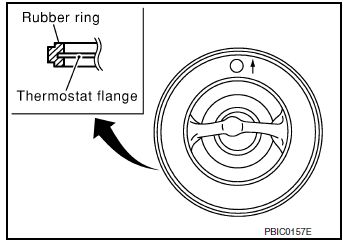

Installation

Inspection

INSPECTION AFTER REMOVAL

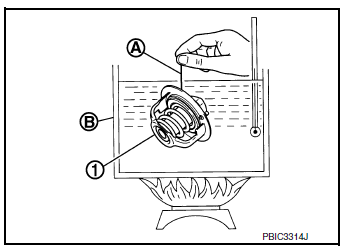

Inspection after removal

Standard Thermostat : Refer to CO-25, "Thermostat".

INSPECTION AFTER INSTALLATION

Water pump
Exploded View Cylinder block Water pump  Water pump gasket  Water pump housing  O-ring  Water pipe Water pump housing gasket  Refer to INSTALLAT ...

Water outlet and water piping
Exploded View Water outlet Water temperature sensor Water outlet O-ring  Clamp Heater pipe O-ring Heater pipe  Water hose  Refer to INSTALLATION Remova ...
