Nissan Rogue Service Manual: P1225 TP sensor
DTC Description
DTC DETECTION
| DTC No. | CONSULT screen terms (Trouble diagnosis content) | DTC detecting condition |
| P1225 | CTP LEARNING-B1 (CTP LEARNING-B1) | Closed throttle position learning value is excessively low. |
POSSIBLE CAUSE
Electric throttle control actuator (TP sensor 1 and 2)
FAIL-SAFE
Not applicable
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
- Turn ignition switch ON.
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Check 1st trip DTC.
Is 1st trip DTC detected? YES >> Proceed to EC-400, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis Procedure

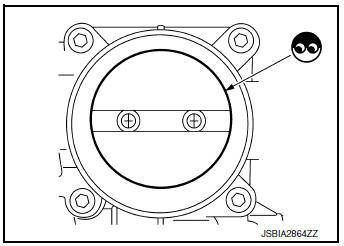

1.CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
- Turn ignition switch OFF.
- Remove the intake air duct. Refer to EM-24, "Exploded View".
- Check if foreign matter is caught between the throttle valve and the housing.
Is the inspection result normal? YES >> Replace electric throttle control actuator. Refer to EM- 26, "Removal and Installation".
NO >> Remove the foreign matter and clean the electric throttle control actuator inside, then perform throttle valve closed position learning. Refer to EC-140, "Work Procedure".
