Nissan Rogue Service Manual: System
SPORT MODE CONTROL
SPORT MODE CONTROL : System Description

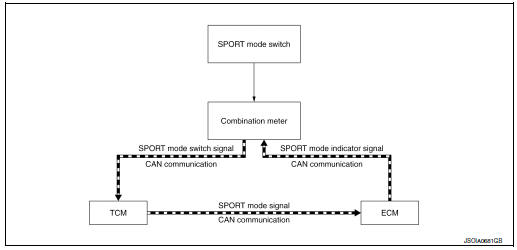

SYSTEM DIAGRAM
SYSTEM DISCRIPTION
- TCM receives SPORT mode switch signal (ON/OFF) from combination meter via CAN communication. TCM transmit SPORT mode signal to ECM via CAN communication according to the signal.
- ECM transmits SPORT mode indicator signal to combination meter via CAN communication. Combination meter illuminates SPORT mode indicator lamp according to the signal.
Each ECU Control
- For TCM control, refer to TM-41, "SPORT MODE CONTROL : System Description".
- For ECM control, refer to EC-54, "SPORT MODE CONTROL : System Description".
Component parts
Component Parts Location
Instrument lower panel LH
No.
Component
Function
1
Combination meter
The combination meter transmittes the following ...
ECU diagnosis information
SPORT MODE
List of ECU Reference
...
