COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

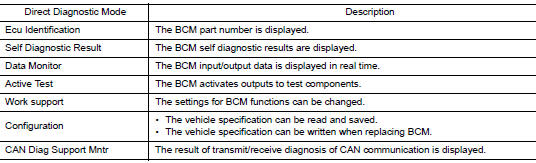

Application item

SYSTEM APPLICATION

BCM can perform the following functions.

System application

BUZZER

BUZZER : CONSULT Function (BCM - BUZZER)

DATA MONITOR

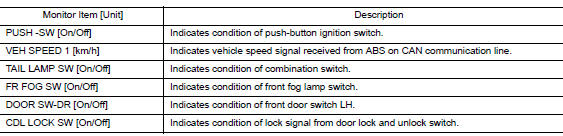

Data monitor

ACTIVE TEST

Active test
