Nissan Rogue Service Manual: Service data and specifications (sds)

Nissan Rogue Service Manual / Suspension / Road Wheels & Tires / Service data and specifications (sds)

Wheel

ALUMINUM WHEEL

Aluminum wheel

STEEL WHEEL

Steel wheel

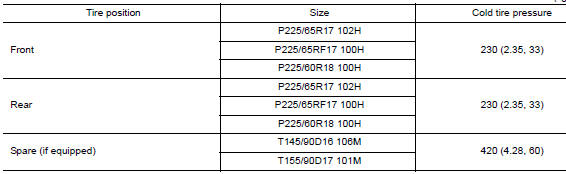

Tire Air Pressure

Tire Air Pressure

Tire pressure sensor
Exploded View Tire pressure sensor  O-ring Valve stem nut  Valve core Valve cap Valve stem assembly : Parts that are replaced as a set when the tire is replaced. ...
