Nissan Rogue Service Manual: Service data and specifications (SDS)

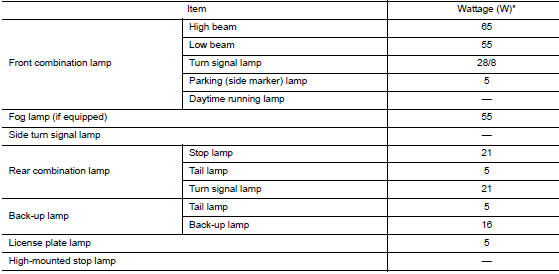

Bulb Specifications
*: Always check with the Parts Department for the latest parts info.
Unit disassembly and assembly
FRONT COMBINATION LAMP
Exploded View
Front combination lamp
Parking (side marker) lamp bulb socket
Headlamp (low beam) bulb
Plastic cover
Headlamp (high beam) bulb
T ...
Led headlamp
...
