Nissan Rogue Service Manual: Rear wiper arm

Nissan Rogue Service Manual / Driver controls / Wiper & Washer / Removal and installation / Rear wiper arm

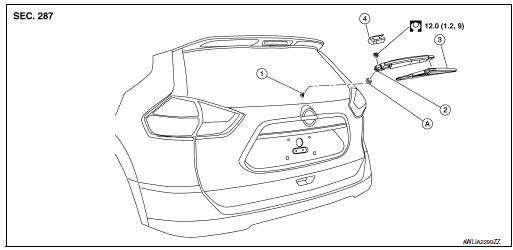

Exploded View

Exploded View

  1. Rear wiper motor
  2. Rear wiper arm
  3. Rear wiper blade
  4.  Rear wiper arm cover
  5. Seal

Removal and Installation

REMOVAL

  1.  Check that the rear wiper is in the auto stop position.
  2.  Remove the rear wiper arm cover.
  3.  Remove the rear wiper arm nut from the rear wiper arm.
  4.  Remove the rear wiper arm.

INSTALLATION

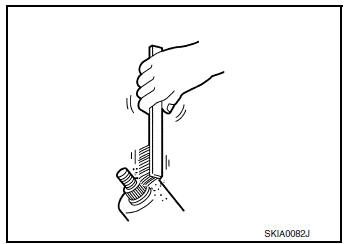

  1.  Clean the rear wiper arm mount as shown, to prevent the possibility of rear wiper arm looseness.

Installation

  1. Check that the rear wiper is in the auto stop position.
  2.  Adjust the rear wiper blade position. Refer to WW-70, "Adjustment".
  3.  Install the rear wiper arm.
  4.  Instal the rear wiper arm cover.
  5.  Check that the rear wiper blades stop at the specified position. Refer to WW-70, "Adjustment".

Adjustment

Adjustment

  1. Defrosting wire

Position the wiper blade on top of the defrosting wire (A).

B: ± 7.5 mm (0.787 ± 0.295 in)

Wiper and washer switch
Removal and Installation The wiper and washer switch is serviced as a part of the combination switch. Refer to BCS-76, "Removal and Installation". ...

Rear wiper motor
Exploded View Rear wiper motor Back door Rear wiper motor harness Removal and Installation REMOVAL  Remove rear wiper arm. Refer to WW-69, "Removal and Installation&quo ...
