Nissan Rogue Service Manual: Rear power window motor
Removal and Installation
REMOVAL
- Remove rear door glass regulator. Refer to GW-22, "Removal and Installation".

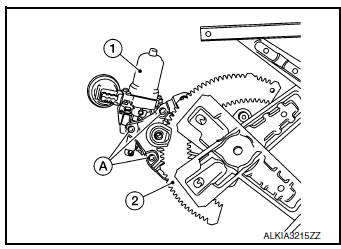

- Remove screws (A) and rear door power window motor (1) from rear door glass regulator (2).
INSTALLATION
Installation is in the reverse order of removal.
