Nissan Rogue Service Manual: Rear disc brake

Nissan Rogue Service Manual / Brakes / Brake System / Unit disassembly and assembly / Rear disc brake

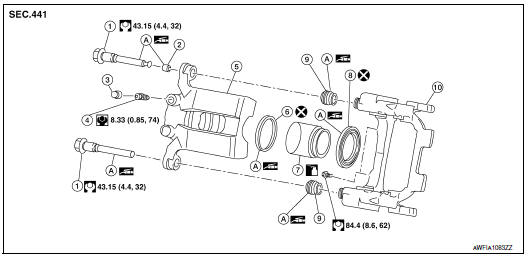

Exploded View

Exploded View

  1. Sliding pin bolt
  2.  Sliding pin bolt bushing
  3. Cap
  4.  Bleeder valve
  5. Brake caliper body
  6. Piston seal
  7.  Piston
  8. Piston boot
  9.  Sliding pin boot
  10.  Torque member
  1.  Rubber grease

Apply brake fluid

Disassembly and Assembly

DISASSEMBLY

  1.  Remove the brake caliper from the vehicle. Refer to BR-43, "BRAKE CALIPER ASSEMBLY : Removal and Installation".
  2.  Remove sliding pin boots from torque member.
  3.  Remove sliding pin bolt bushing from sliding pin bolt.
  4.  Place a wooden block in the cylinder body and blow air from union bolt hole to remove piston and piston boot.

    WARNING: Do not get fingers caught between pistons and brake caliper body.

    CAUTION: Do not reuse piston boot.

Disassembly

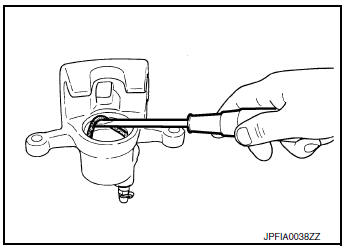

  1. Remove piston seal from brake caliper body using suitable tool.

CAUTION:

  1.  Remove bleeder valve and cap.

Disassembly

INSPECTION AFTER DISASSEMBLY

Brake Caliper Body

Check the inner wall of the brake caliper body for rust, wear, cracks or damage. Replace the brake caliper body if any abnormal condition is detected.

CAUTION: Always clean with new brake fluid. Do not clean with mineral oil such as gasoline and light oil.

Torque Member

Check the torque member for rust, wear, cracks or damage. Replace the torque member if any abnormal condition is detected.

Piston

Check the surface of the piston for rust, wear, cracks or damage. Replace the piston if any abnormal condition is detected.

CAUTION: Piston sliding surface is plated. Do not polish with sandpaper.

Sliding Pin and Sliding Pin Bolt Boot

Check the sliding pins and sliding pin bolt boots for rust, wear, cracks or damage. Replace the parts if any abnormal condition is detected.

ASSEMBLY

  1.  Install bleeder valve and cap.

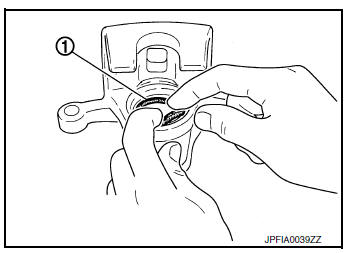

  2.  Apply rubber grease to piston seal (1), and install it to the brake caliper body.

CAUTION: Do not reuse piston seal.

Assembly

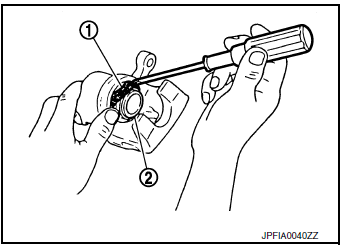

  1. Apply rubber grease to piston boot (1). Cover the piston (2) end with the piston boot, and then install cylinder side lip on the piston boot securely into the groove on brake caliper body.

CAUTION: Do not reuse piston boot.

Assembly

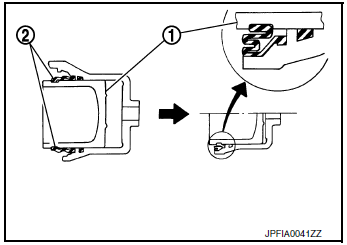

  1. Apply brake fluid to piston (1). Push piston into brake caliper body by hand and push piston boot (2) piston side lip into the piston groove.

    CAUTION: Press the piston evenly and vary the pressing point to prevent cylinder inner wall from contact.

  2.  Apply rubber grease to bushing; install bushing to sliding pin bolt.
  3.  Install sliding pin boots to torque member.
  4.  Install the brake caliper to the vehicle. Refer to BR-43, "BRAKE CALIPER ASSEMBLY : Removal and Installation".

Assembly

INSPECTION AFTER INSTALLATION

  1.  Check the drag of rear disc brake. If any drag is found, follow the procedure described below.
  2.  Remove brake pads.
  3.  Using a suitable tool, press the pistons into the brake caliper body.

    CAUTION: Do not damage the piston boots.

  4.  Install brake pads.
  5.  Depress the brake pedal several times.
  6.  Check the drag of rear disc brake again. If any drag is found, disassemble the brake caliper body.
  7. Burnish contact surfaces after refinishing or replacing disc rotors or if a soft pedal occurs at very low mileage.

    Refer to BR-19, "Brake Burnishing".
