Nissan Rogue Service Manual: Power window relay
Description
Power is supplied to the main power window and door lock/unlock with BCM control.
Component Function Check
1. CHECK POWER WINDOW RELAY POWER SUPPLY CIRCUIT
Check that an operation noise of power window relay [located behind the A/C switch assembly (automatic A/ C) or Front air control (manual A/C)] can be heard when turning the main power window and door lock/unlock switch ON.
Is the inspection result normal? YES >> Power window relay power supply circuit is OK.
NO >> Refer to PWC-48, "Diagnosis Procedure".
Diagnosis Procedure
Regarding Wiring Diagram information, refer to PWC-17, "Wiring Diagram".
1. CHECK POWER WINDOW RELAY CONTROL CIRCUIT
- Disconnect BCM connector.
- Turn ignition switch ON.
- Check voltage between BCM connector and ground.
Is the inspection result normal? YES >> Replace the BCM. Refer to BCS-75, "Removal and Installation" (with Intelligent Key system) or BCS-135, "Removal and Installation" (without Intelligent Key system).
NO >> GO TO 2.
2. CHECK HARNESS CONTINUITY
- Turn ignition switch OFF.
- Disconnect BCM and power window relay.
- Check continuity between BCM connector and power window relay connector.
Is the inspection result normal? YES >> GO TO 3.
NO >> Repair or replace harness.
3. CHECK POWER WINDOW RELAY
Check power window relay.
Refer to PWC-49, "Component Inspection".
Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-41, "Intermittent Incident".
NO >> Replace power window relay.
Component Inspection

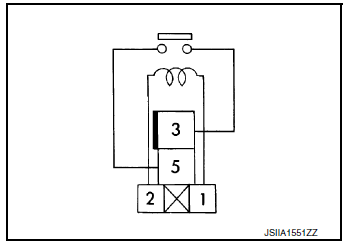

1. CHECK POWER WINDOW RELAY
Check power window relay.
Is the inspection result normal? YES >> Inspection End.
NO >> Replace power window relay.
Encoder circuit
Description
Detects condition of the front power window motor LH operation and transmits
to main power window and door
lock/unlock switch as pulse signal.
Component Function Check
1.CHECK ENCODE ...
