Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Power Window Control System / DTC/circuit diagnosis / Door switch

WITH INTELLIGENT KEY

WITH INTELLIGENT KEY : Component Function Check

1.CHECK FUNCTION

  1.  Select "DOOR LOCK" of "BCM" using CONSULT.
  2.  Select "DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR", in "Data Monitor" mode.
  3.  Check that the function operates normally according to the following conditions.

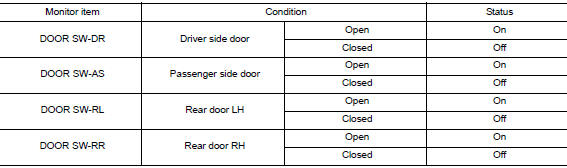

Check function

Is the inspection result normal? YES >> Door switch is OK.

NO >> Refer to PWC-50, "WITH INTELLIGENT KEY : Diagnosis Procedure".

WITH INTELLIGENT KEY : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-69, "Wiring Diagram".

1.CHECK DOOR SWITCH INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect malfunctioning door switch connector.
  3.  Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

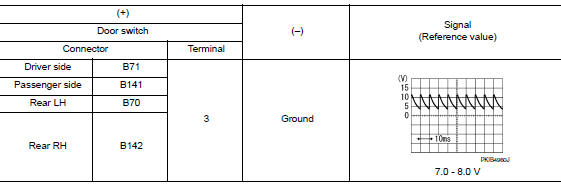

Check door switch input signal

Is the inspection result normal? YES >> GO TO 3.

NO >> GO TO 2.

2.CHECK DOOR SWITCH CIRCUIT

  1.  Disconnect BCM connector.
  2.  Check continuity between door switch harness connector and BCM harness connector.

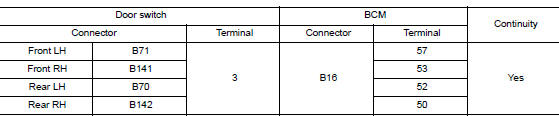

Check door switch circuit

  1. Check continuity between door switch harness connector and ground.

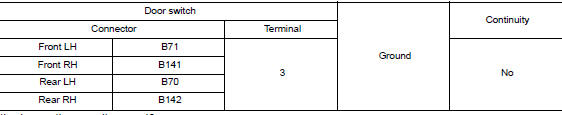

Check door switch circuit

Is the inspection result normal? YES >> Replace BCM. Refer to BCS-75, "Removal and Installation".

NO >> Repair or replace harness.

3.CHECK DOOR SWITCH

Refer to PWC-51, "WITH INTELLIGENT KEY : Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace malfunctioning door switch. Refer to DLK-269, "Removal and Installation".

4.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

WITH INTELLIGENT KEY : Component Inspection

1.CHECK DOOR SWITCH

  1.  Turn ignition switch OFF.
  2.  Disconnect malfunctioning door switch connector.
  3.  Check continuity between door switch terminals.

Check door switch

Is the inspection result normal? YES >> Inspection End.

NO >> Replace malfunctioning door switch. Refer to DLK-269, "Removal and Installation".

WITHOUT INTELLIGENT KEY

WITHOUT INTELLIGENT KEY : Description

Detects door open/close condition.

WITHOUT INTELLIGENT KEY : Component Function Check

1.CHECK FUNCTION

  1. Select "DOOR LOCK" of BCM using CONSULT.
  2.  Select "DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR", in Data Monitor mode.
  3.  Check that the function operates normally according to the following conditions

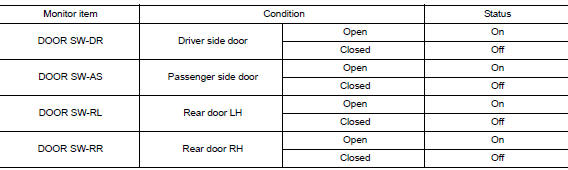

Check function

Is the inspection result normal? YES >> Door switch is OK.

NO >> Refer to DLK-319, "Diagnosis Procedure".

WITHOUT INTELLIGENT KEY : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-293, "Wiring Diagram".

1.CHECK DOOR SWITCH INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect malfunctioning door switch connector.
  3.  Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

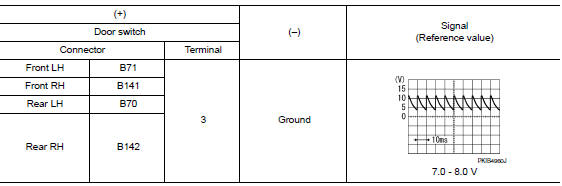

Check door switch input signal

Is the inspection result normal? YES >> GO TO 3.

NO >> GO TO 2.

2.CHECK DOOR SWITCH CIRCUIT

  1.  Disconnect BCM connector.
  2.  Check continuity between door switch harness connector and BCM harness connector.

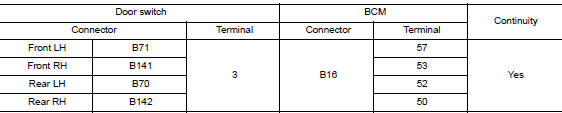

Check door switch circuit

  1. Check continuity between door switch harness connector and ground.

Check door switch circuit

Is the inspection result normal? YES >> Replace BCM. Refer to BCS-135, "Removal and Installation".

NO >> Repair or replace harness.

3.CHECK DOOR SWITCH

Refer to DLK-150, "Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace malfunctioning door switch. Refer to DLK-385, "Removal and Installation".

4.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

WITHOUT INTELLIGENT KEY : Component Inspection

1.CHECK DOOR SWITCH

  1.  Turn ignition switch OFF.
  2. Disconnect door switch connector.
  3.  Check door switch.

Check door switch

Is the inspection result normal? YES >> Inspection End.

NO >> Replace malfunctioning door switch. Refer to DLK-385, "Removal and Installation".
