DTC Description

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms (Trouble diagnosis content)	DTC detecting condition
P0453	EVAP SYS PRES SEN (Evaporative emission system pressure sensor/switch high)	An excessively high voltage from the sensor is sent to ECM.

POSSIBLE CAUSE

Harness or connectors (EVAP control system pressure sensor circuit is shorted.)
EVAP control system pressure sensor

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.

Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION: Always perform test at a temperature of 5°C (41°F) or more.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

Start engine and warm it up to normal operating temperature.
Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
Make sure that “FUEL T/TMP SE” indication is more than 0°C (32°F).
Start engine and wait at least 20 seconds.
Check 1st trip DTC.

With GST

Start engine and warm it up to normal operating temperature.
Set voltmeter probes to ECM harness connector terminals as per the following.

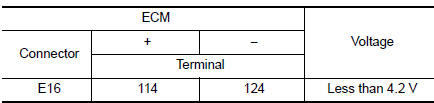

Perform DTC confirmation procedure

Make sure that the voltage is less than 4.2 V.
Turn ignition switch OFF and wait at least 10 seconds.
Start engine and wait at least 20 seconds.
Check 1st trip DTC.

Is 1st trip DTC detected? YES >> Proceed to EC-335, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR FOR WATER

Turn ignition switch OFF.
Disconnect EVAP control system pressure sensor harness connector.
Check sensor harness connector for water.

Water should not exist.

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace harness connector.

2.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY

Turn ignition switch ON.
Check the voltage between EVAP control system pressure sensor harness connector and ground.

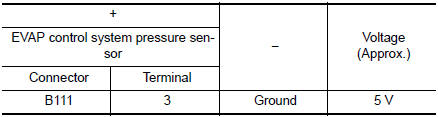

Check EVAP control system pressure sensor power supply

Is the inspection result normal? YES >> GO TO 4.

NO >> GO TO 3.

3.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT

Turn ignition switch OFF.
Disconnect ECM harness connector.
Check the continuity between EVAP control system pressure sensor harness connector and ECM harness connector.

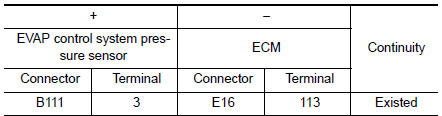

Heck EVAP control system pressure sensor power supply circuit

Also check harness for short to ground and to power.

Is the inspection result normal? YES >> Perform the trouble diagnosis for power supply circuit.

NO >> Repair or replace error-detected parts

4.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT

Turn ignition switch OFF.
Disconnect ECM harness connector.
Check the continuity between EVAP control system pressure sensor harness connector and ECM harness connector.

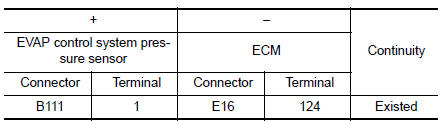

Check EVAP control system pressure sensor ground circuit

Also check harness for short to power.

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace error-detected parts.

5.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR SIGNAL CIRCUIT

Check the continuity between EVAP control system pressure sensor harness connector and ECM harness connector.

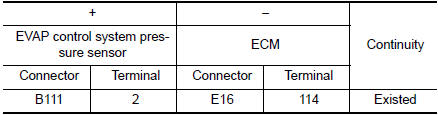

Check EVAP control system pressure sensor signal circuit

Also check harness for short to ground and to power.

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace error-detected parts.

6.CHECK RUBBER TUBE

1. Disconnect rubber tube connected to EVAP canister vent control valve.

2. Check the rubber tube for clogging.

Is the inspection result normal? YES >> GO TO 7.

NO >> Clean the rubber tube using an air blower, repair or replace rubber tube.

7.CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to EC-321, "Component Inspection".

Is the inspection result normal? YES >> GO TO 8.

NO >> Replace EVAP canister vent control valve. Refer to FL-21, "Removal and Installation".

8.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to EC-337, "Component Inspection".

Is the inspection result normal? YES >> GO TO 9.

NO >> Replace EVAP control system pressure sensor. Refer to FL-22, "Removal and Installation".

9.CHECK IF EVAP CANISTER IS SATURATED WITH WATER

Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
Check if water will drain from the EVAP canister.

Does water drain from EVAP canister? YES >> GO TO 10.

NO >> GO TO 12.

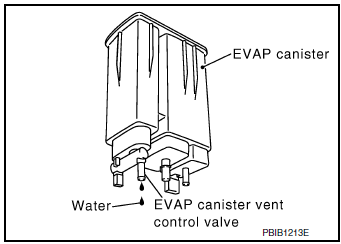

Check if EVAP canister is saturated with water

10.CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor attached.

The weight should be less than 1.9 kg (4.2 lb).

Is the inspection result normal? YES >> GO TO 12.

NO >> GO TO 11.

11.DETECT MALFUNCTIONING PART

Check the following.

EVAP canister for damage
EVAP hose between EVAP canister and vehicle frame for clogging or poor connection

>> Repair hose or replace EVAP canister. Refer to FL-19, "Removal and Installation".

12.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> INSPECTION END

Component Inspection

1.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Turn ignition switch OFF.
Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.
Always replace O-ring with a new one.
Install a vacuum pump to EVAP control system pressure sensor.
Turn ignition switch ON and check output voltage between ECM harness connector and ground under the following conditions.

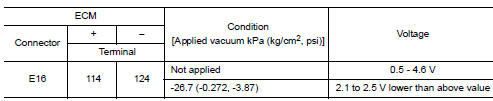

Check EVAP control system pressure sensor

CAUTION:

Always calibrate the vacuum pump gauge when using it.
Do not apply below -93.3 kPa (-0.952 kg/cm2, -13.53 psi) or pressure over 101.3 kPa (1.033 kg/ cm2, 14.69 psi).

Is the inspection result normal? YES >> INSPECTION END

NO >> Replace EVAP control system pressure sensor. Refer to FL-22, "Removal and Installation".
