Nissan Rogue Service Manual: Moonroof switch

Removal and Installation

REMOVAL

  1.  Remove map lamp assembly. Refer to INL-55, "Removal and Installation".

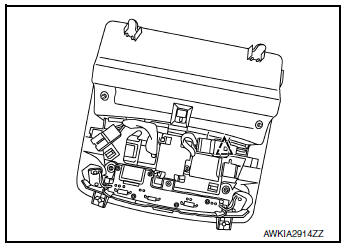

  2.  Using a suitable tool release clip from harness connector.

    : Clip

Removal

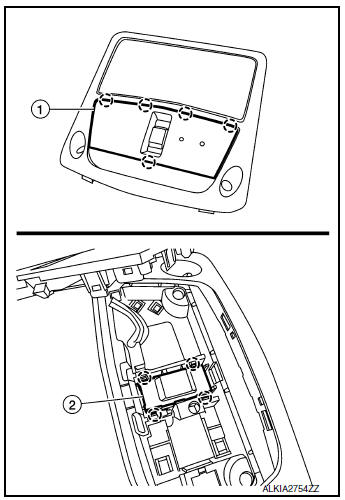

  1. Using a suitable tool release pawls and remove moonroof switch finisher (1).
  2. Using a suitable tool release pawls and remove moonroof switch (2) from the front room/map lamp.

    : Pawl

Removal

INSTALLATION

Installation is in the reverse order of removal.
