Nissan Rogue Service Manual: Wind deflector
Removal and Installation
REMOVAL
- Remove headlining Refer to INT-30, "Removal and Installation".
- Open the glass lid to view the wind deflector.

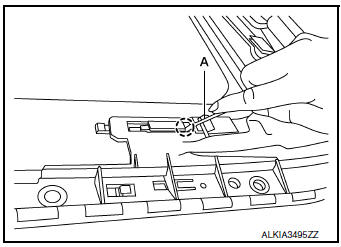

- Use suitable tool (A) release pawl on LH/RH side of wind deflector.
: Pawl

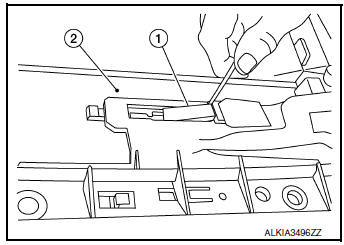

- Release wind deflector retainer (1) from moonroof unit (2).

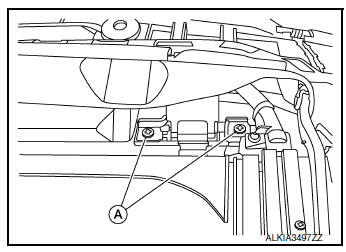

- Remove screws (A) on both LH/RH sides of wind deflector.
INSTALLATION
Installation is in the reverse order of removal.
Sunshade motor assembly
Removal and Installation
REMOVAL
Remove the headlining. Refer to. INT-30, "Removal and Installation".
Disconnect the harness connector (A) from the sunshade motor
assemb ...
Moonroof switch
Removal and Installation
REMOVAL
Remove map lamp assembly. Refer to INL-55, "Removal and Installation".
Using a suitable tool release clip from harness connector.
: Cl ...
