Nissan Rogue Service Manual: Meter system

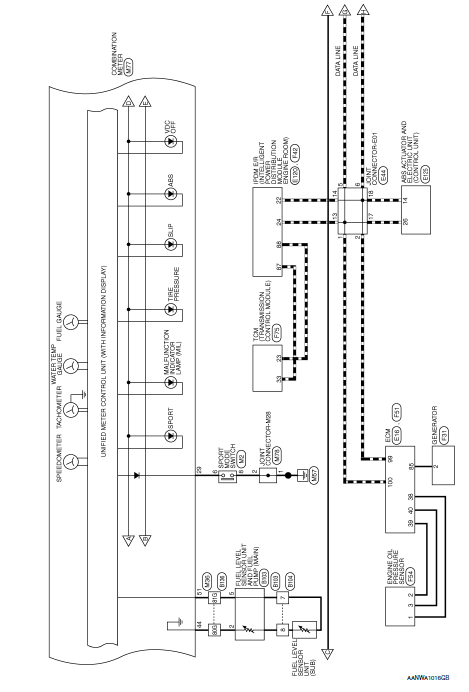

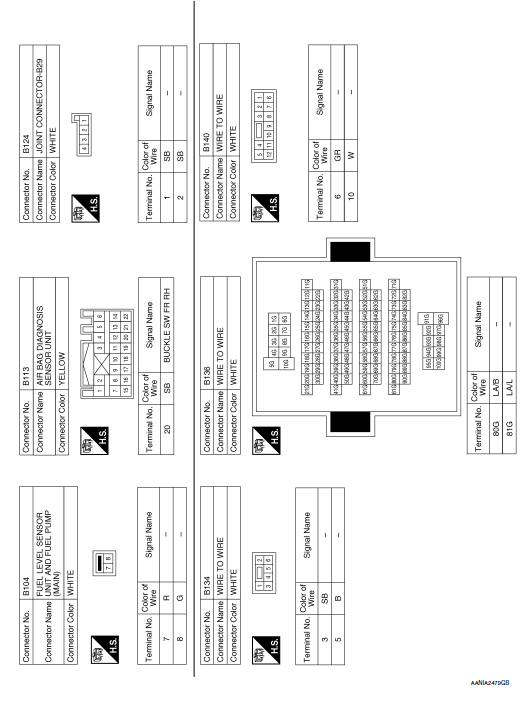

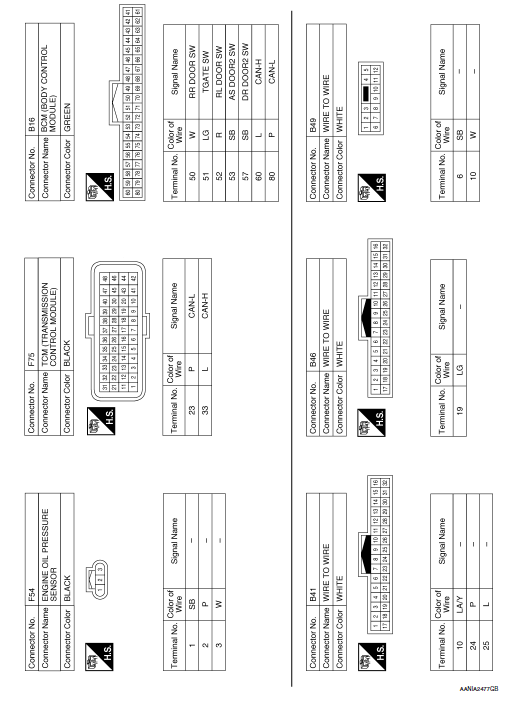

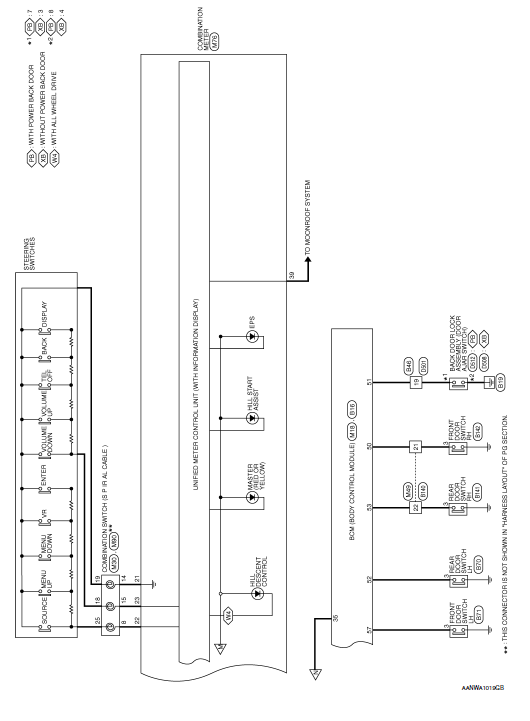

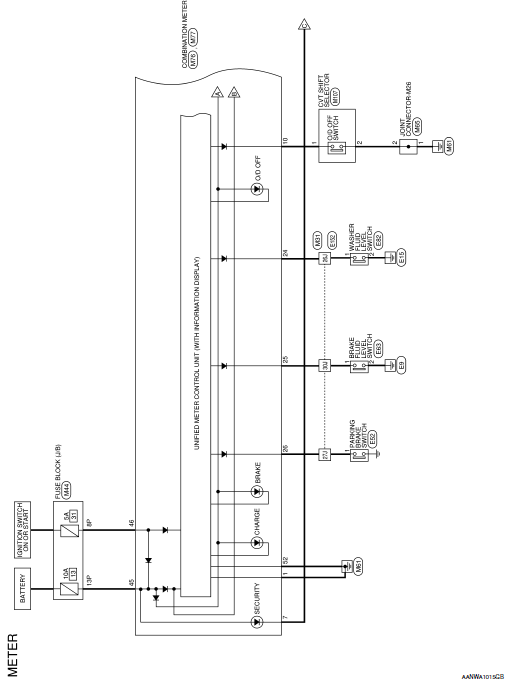

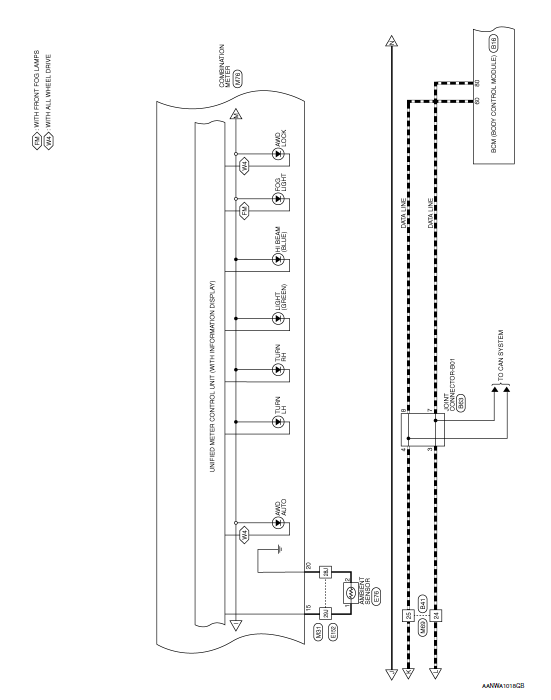

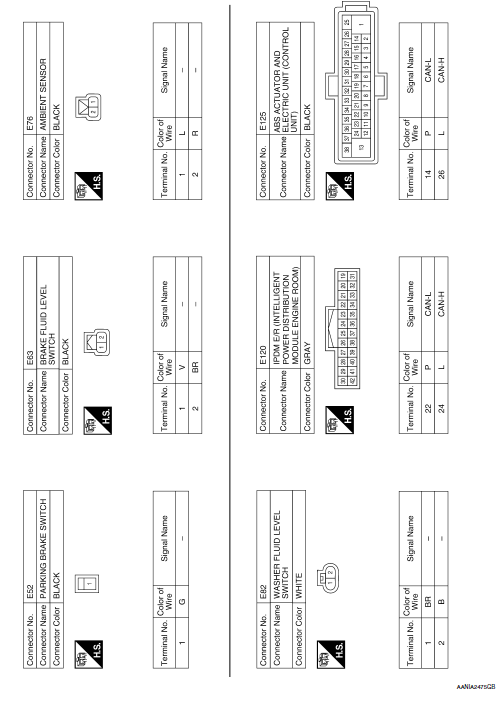

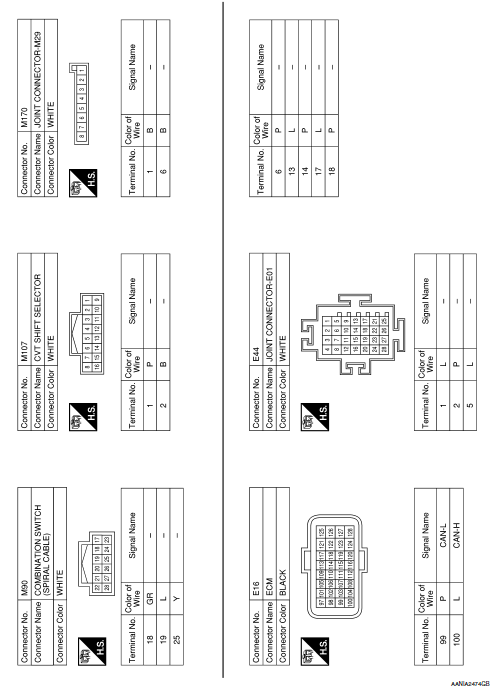

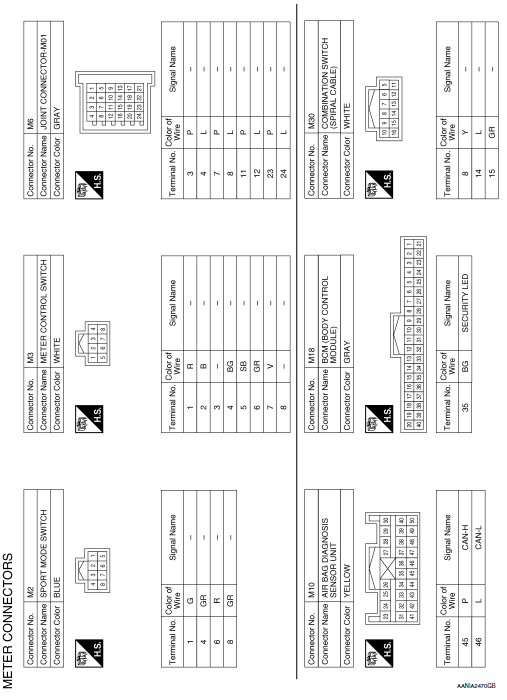

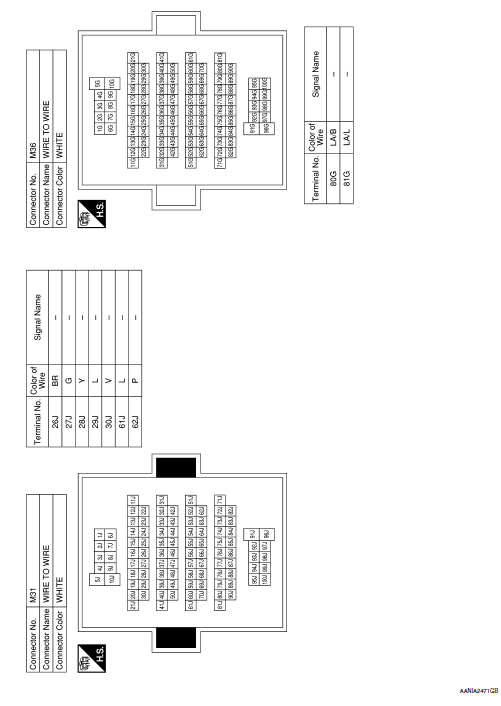

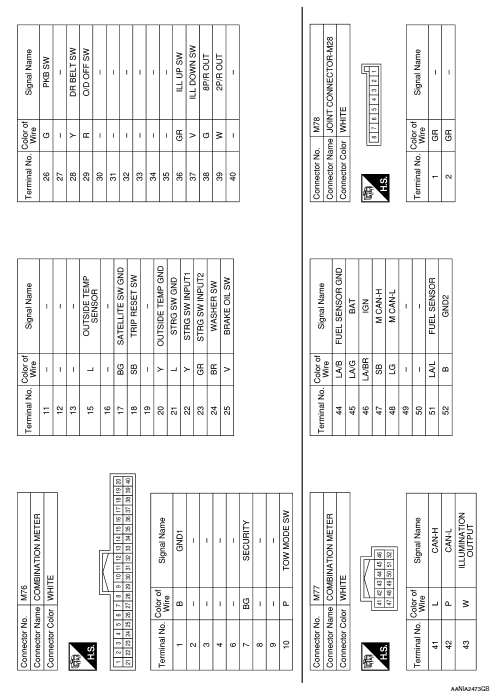

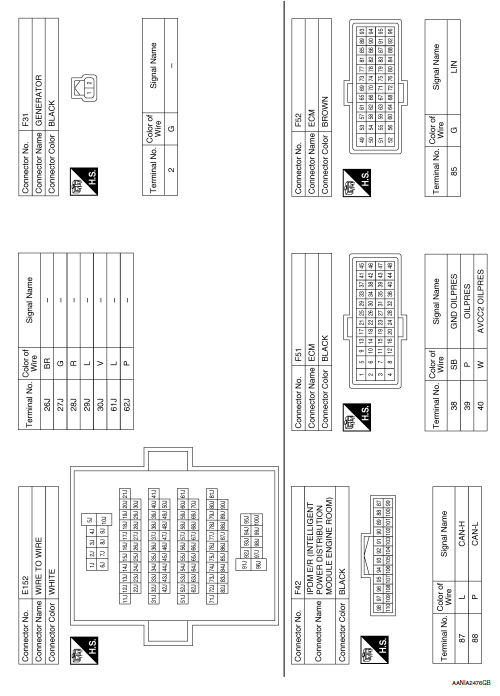

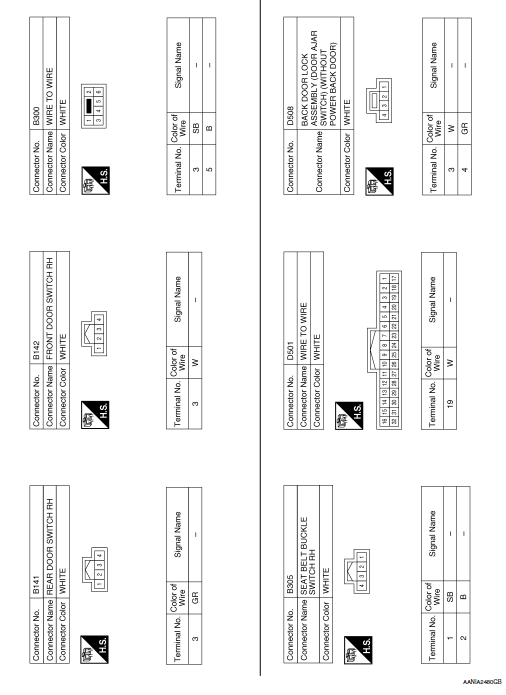

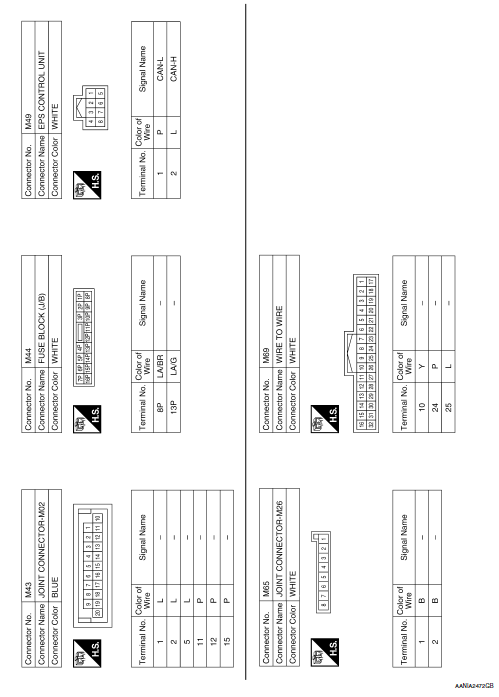

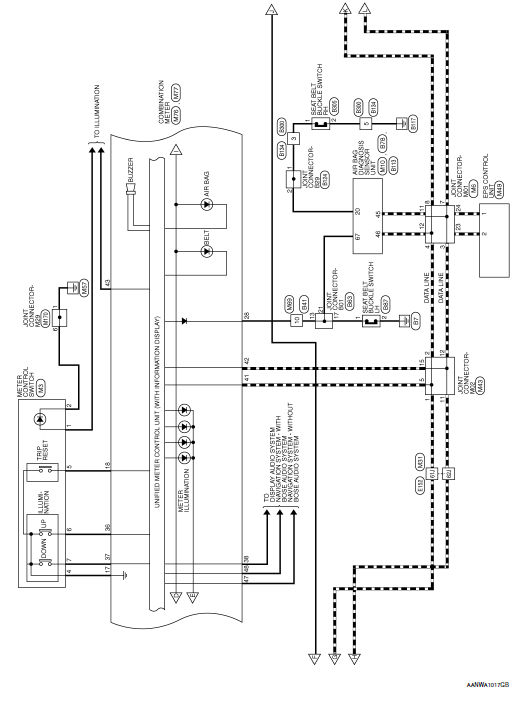

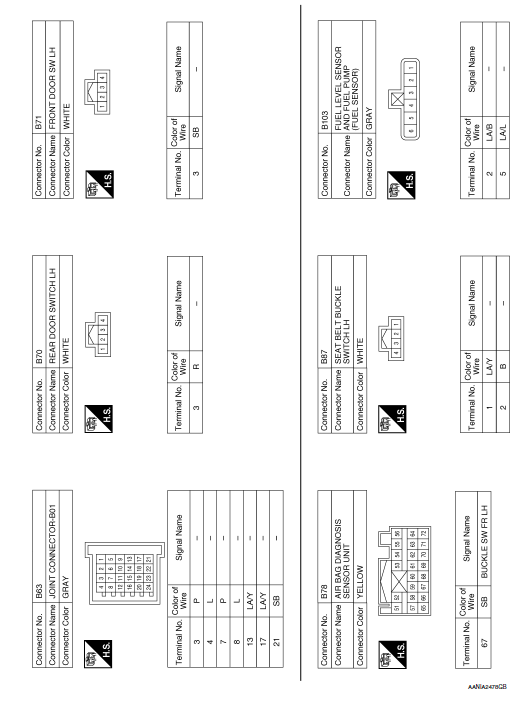

Wiring diagram

Compass

Other materials:

U1111 lost communication (chassis control module)
DTC Description DTC DETECTION LOGIC DTC CONSULT screen terms (Trouble diagnosis content) DTC detection condition U1111 LOST COMM (CHASSIS CONT MDUL) (Lost Communication With Chassis Control Module) When the ignition switch is ON, TCM is unable to receive the CA ...

C1704, C1705, C1706, C1707 low tire pressure
DTC Logic NOTE: The Signal Tech II Tool [- (J-50190)] can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.  Activate and display TPMS sensor IDs  Display tire pressure reported by the TPMS sensor  Read TPMS DTC ...

Front wiper motor lo circuit
Component Function Check 1.CHECK FRONT WIPER LO OPERATION CONSULT ACTIVE TEST  Select FR WIPER of BCM (WIPER) active test item.  Check front wiper operation. LO : Front wiper (LO) operation OFF : Front wiper OFF Is the inspection result normal? YES >> Front wiper motor ...
