Nissan Rogue Service Manual: Meter control switch
Removal and Installation
REMOVAL
- Remove the instrument finisher (A). Refer to IP-14, "Exploded View".

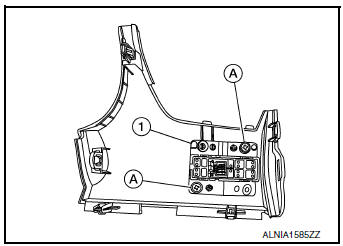

- Remove the screws (A) and the meter control switch (1).
INSTALLATION
Installation is in the reverse order of removal.
Combination meter
Removal and Installation
REMOVAL
Disconnect the negative battery terminal. Refer to PG-77, "Removal
and Installation".
Remove the cluster lid A. Refer to IP-20, "R ...
Unit disassembly and assembly
COMBINATION METER
Exploded View
Combination meter
Combination meter lens
Pawl
Disassembly and Assembly
CAUTION:
Do not touch the display, pointer, inside of combination me ...
