Nissan Rogue Service Manual: Unit disassembly and assembly
COMBINATION METER

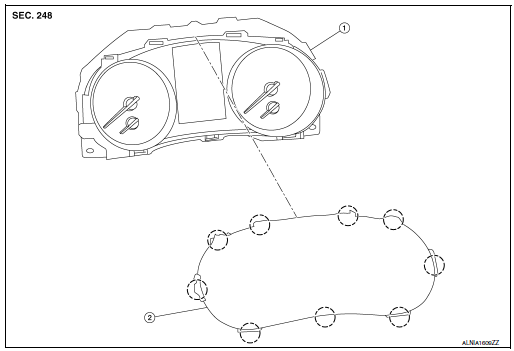

Exploded View
- Combination meter
- Combination meter lens
Pawl
Disassembly and Assembly
CAUTION:
- Do not touch the display, pointer, inside of combination meter or the printed area of the dial during disassembly or assembly.
- Keep away from magnetic sources.
- Do not damage the combination meter lens.
DISASSEMBLY
- Remove the combination meter. Refer to MWI-82, "Removal and Installation".
- Release pawls and remove the combination meter lens.
ASSEMBLY
Assembly is in the reverse order of disassembly.
Meter control switch
Removal and Installation
REMOVAL
Remove the instrument finisher (A). Refer to IP-14, "Exploded
View".
Remove the screws (A) and the meter control switch (1).
