Nissan Rogue Service Manual: Combination meter
Removal and Installation
REMOVAL
- Disconnect the negative battery terminal. Refer to PG-77, "Removal and Installation".
- Remove the cluster lid A. Refer to IP-20, "Removal and Installation".

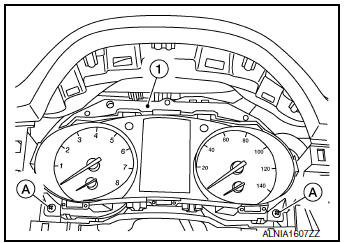

- Remove screws (A), from the combination meter (1).
- Release the clips and remove the combination meter (1) from
the instrument panel.

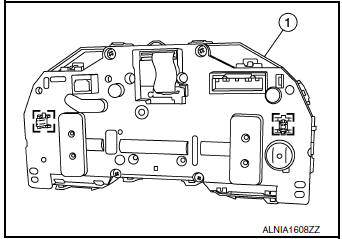

: Clips - Disconnect the harness connectors from the combination meter and remove.
INSTALLATION
Installation is in the reverse order of removal.
Meter control switch
Removal and Installation
REMOVAL
Remove the instrument finisher (A). Refer to IP-14, "Exploded
View".
Remove the screws (A) and the meter control switch (1).
INSTA ...
