Nissan Rogue Service Manual: Meter control switch
Removal and Installation
REMOVAL
- Remove the instrument finisher (A). Refer to IP-14, "Exploded View".

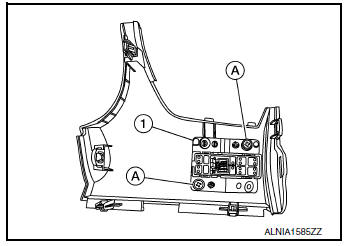

- Remove the screws (A) and the meter control switch (1).
INSTALLATION
Installation is in the reverse order of removal.
Luggage room lamp
Removal and Installation
REMOVAL
Insert a suitable tool (A) into the gap between the luggage lower
finisher (RH) (2) and the top of luggage room lamp (1) to release
the pawl.
: Pawl
...
Service data and specifications (SDS)
Bulb Specifications
*:Always check with the parts department for the latest parts information. ...
