Nissan Rogue Service Manual: Lumbar support switch

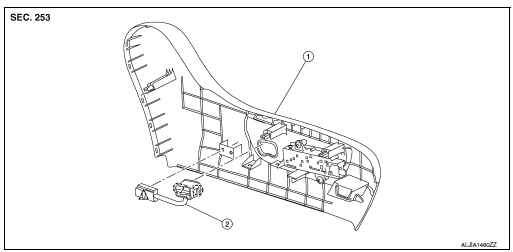

Exploded View
- Seat cushion outer finisher
- Lumbar support switch
Clip
Pawl
Removal and Installation
REMOVAL

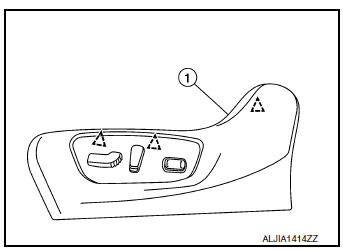

- Using a suitable tool release clips and remove seat cushion
outer finisher (1).: Clip
- Disconnect harness connector from lumbar support switch.
- Using a suitable tool release clip and pawls and remove lumbar support switch.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Visually check the clips and pawls for deformation and damage during installation. Replace with new ones if necessary.
- When installing seat cushion outer finisher, check that clips are securely placed into seat cushion frame holes.
Power seat switch
Exploded View
Seat cushion outer finisher
Power seat switch
Removal and Installation
REMOVAL
NOTE:
LH shown, RH similar.
Using a suitable tool release clips and remove seat ...
Heated seat switch
Exploded View
Center console cup holder
Driver heated seat switch
Passenger heated seat switch
Switch carrier
Pawl
Removal and Installation
REMOVAL
Remove th ...
