Nissan Rogue Owners Manual: Liftgate

Nissan Rogue Owners Manual / Pre-driving checks and adjustments / Liftgate

WARNING

Always be sure the liftgate has been closed securely to prevent it from opening while driving.
Do not drive with the liftgate open. This could allow dangerous exhaust gases to be drawn into the vehicle. Refer to “Exhaust gas (carbon monoxide)” in the “Starting and driving” section of this manual.
Do not leave children unattended inside the vehicle. They could unknowingly activate switches or controls. Unattended children could become involved in serious accidents.
Always be sure that hands and feet are clear of the door frame to avoid injury while closing the liftgate.

CAUTION

Do not use accessory carriers that attach to the rear hatch. Doing so will cause damage to the vehicle.

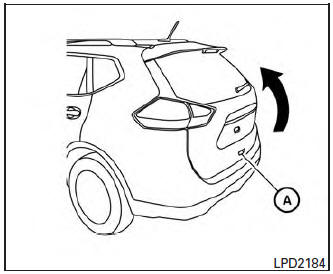

Operating the manual liftgate (if so equipped)

The power door lock system allows you to lock or unlock all doors including the liftgate simultaneously.

To open the liftgate, press the request switch A and pull up on the handle.

To close, lower and push the liftgate down securely.

Hood

Hood Pull the hood lock release handle 1 located below the instrument panel until the hood springs up slightly. Locate the lever 2 in between the hood and grille and push the lever ...

Operating the power liftgate (if so equipped)

WARNING Make sure that all passengers have their hands, etc., inside the vehicle before closing the liftgate. Do not leave children unattended inside the vehicle ...
