Nissan Rogue Owners Manual: iPod®* player operation with Navigation System (if so equipped)

iPod®* player operation with Navigation System

Connecting iPod®

Refer to your device manufacturer’s owner information regarding the proper use and care of the device.

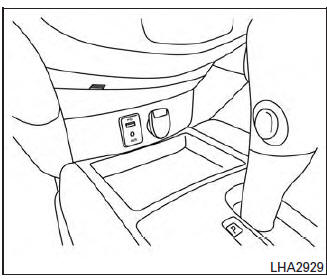

To connect an iPod® to the vehicle so that the iPod® can be controlled with the audio system controls and display screen, use the USB connection port located on the center console below the heater and air conditioner controls. Connect the iPod®-specific end of the cable to the iPod® and the USB end of the cable to the USB connection port on the vehicle. If your iPod® supports charging via a USB connection, its battery will be charged while connected to the vehicle with the ignition switch in the ACC or ON position.

While connected to the vehicle, the iPod® can only be operated by the vehicle audio controls.

To disconnect the iPod® from the vehicle, remove the USB end of the cable from the USB connection port on the vehicle, then remove the cable from the iPod®.

* iPod® is a trademark of Apple Inc., registered in the U.S. and other countries.

Compatibility

The following models are compatible:

•  iPod® Classic 5th generation (firmware version 1.3.0 or later)
•  iPod® Classic 6th generation (firmware version 2.0.1 or later)
•  iPod® Classic 7th generation (firmware version 2.0.4 or later)
•  iPod® Touch 2nd generation (firmware version 4.2.1 or later)*
•  iPod® Touch 3rd generation (firmware version 5.1 or later)
•  iPod® Touch 4th generation (firmware version 5.1 or later)
• iPod® nano - 1st generation (firmware version 1.3.1 or later)
•  iPod® nano - 2nd generation (firmware version 1.1.3 or later)
•  iPod® nano - 3rd generation (firmware version 1.1.3 or later)
•  iPod® nano - 4th generation (firmware version 1.0.4 or later)
•  iPod® nano - 5th generation (firmware version 1.0.2 or later)
•  iPod® nano - 6th generation (firmware version 1.1 or later)
•  iPhone® 3G (firmware version 4.2.1 or later)
•  iPhone® 3GS (firmware version 5.1 or later)
•  iPhone® 4 (firmware version 5.1 or later)
•  iPhone® 4S (firmware version 5.1 or later)

* Some features of this iPod® may not be fully functional.

Make sure that your iPod® firmware is updated to the version indicated above.

Audio main operation

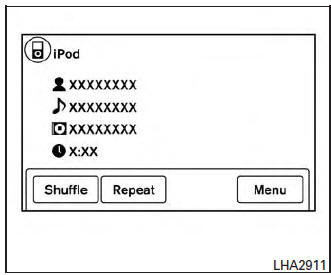

AUX button

When the AUX button is pressed with the system off and the iPod® connected, the system will turn on. If another audio source is playing and the iPod® is connected, press the AUX button repeatedly until the center display changes to the iPod® mode.

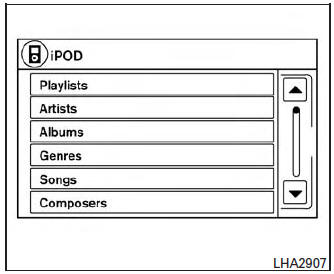

Interface

The interface for iPod® operation shown on the vehicle’s audio system display screen is similar to the iPod® interface. Use the touch-screen, BACK button or the scrolling knob to navigate the menus on the screen.

When the iPod® is playing, touch the “Menu” key to bring up the iPod® interface.

Depending on the iPod® model, the following items may be available on the menu list screen.

For additional information, refer to the iPod® Owner’s Manual regarding each menu item.

•  Playlists
• Artists
•  Albums
•  Genres
•  Songs
•  Composers
•  Audiobooks
•  Podcasts

Shuffle and repeat play mode

While the iPod® is playing, the play pattern can be altered so that songs are repeated or played randomly.

Shuffle

Touch the “Shuffle” key to apply a random play pattern to the iPod®. When the Shuffle mode is active, the text is illuminated. Touching the “Shuffle” key once more will display the “Shuffle songs” key. To cancel Shuffle mode, touch the “Shuffle” key again until the text is no longer illuminated.

Repeat

Touch the “Repeat” key to apply a repeat play pattern to the iPod®. When the repeat mode is active, the text is illuminated. Touching the “Repeat” key once more will display the “Repeat song” key. To cancel Repeat mode, touch the “Repeat” key again until the text is no longer illuminated.

Seek buttons

Press the or seek button to skip backward or forward one track.

Press and hold the or seek button for 1.5 seconds while a track is playing to reverse or fast forward the track being played. The track plays at an increased speed while reversing or fast forwarding. When the button is released, the track returns to normal play speed.

Scrolling menus

While navigating long lists of artists, albums or songs in the music menu, it is possible to scroll the list by the first character in the name. To activate character indexing, touch and hold the “A-Z” key in the upper right corner of the screen.

Turn the TUNE/SCROLL knob to choose the number or letter to jump to in the list and then press the ENTER/AUDIO button.

If no character is selected after 2 seconds, the display returns to normal.
