Caution

This section describes information peculiar to a vehicle and inspection procedures.
For trouble diagnosis procedure, refer to LAN-17, "Trouble Diagnosis Procedure".

Abbreviation List

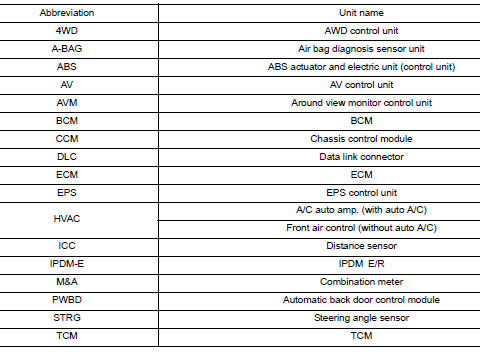

Unit name abbreviations in CONSULT CAN diagnosis and in this section are as per the following list.

Abbreviation List
