Nissan Rogue Owners Manual: Horn

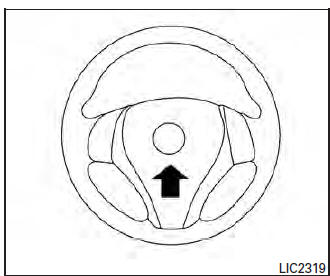

To sound the horn, push near the horn icon on the steering wheel.
| WARNING Do not disassemble the horn. Doing so could affect proper operation of the supplemental front air bag system. Tampering with the supplemental front air bag system may result in serious personal injury. |
