Nissan Rogue Service Manual: ECU diagnosis information

EPS CONTROL UNIT

Reference Value

VALUES ON THE DIAGNOSIS TOOL

CAUTION: The output signal indicates the EPS control unit calculation data. The normal values will be displayed even in the event that the output circuit (harness) is open.

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

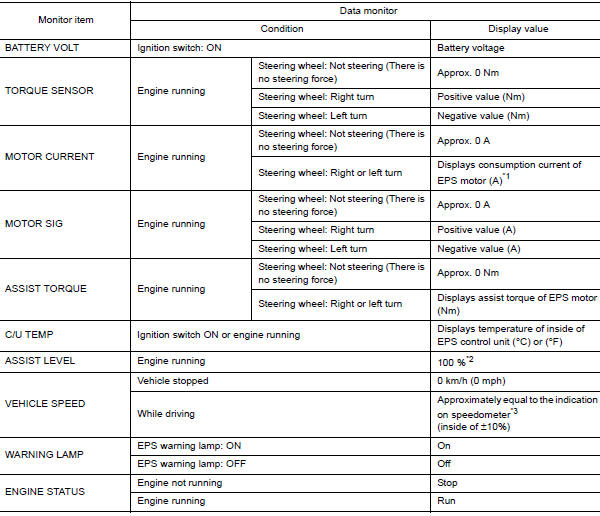

Reference Value

*1: Almost in accordance with the value of “MOTOR SIG”. It is not a malfunction though these values are not accorded when steering quickly.
*2: Normally displays 100%. In case of an excessive stationary steering, the assist curvature gradually falls.

However, it returns to 100% when left standing.
*3: It is not a malfunction, though it might not be corresponding just after ignition switch in turned ON

TERMINAL LAYOUT

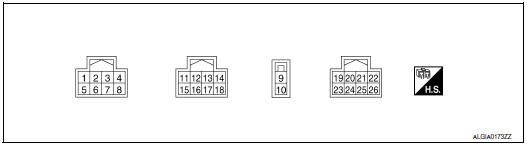

Terminal layout

PHYSICAL VALUES

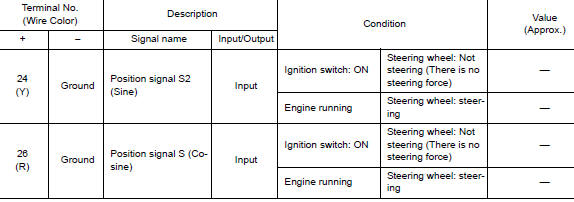

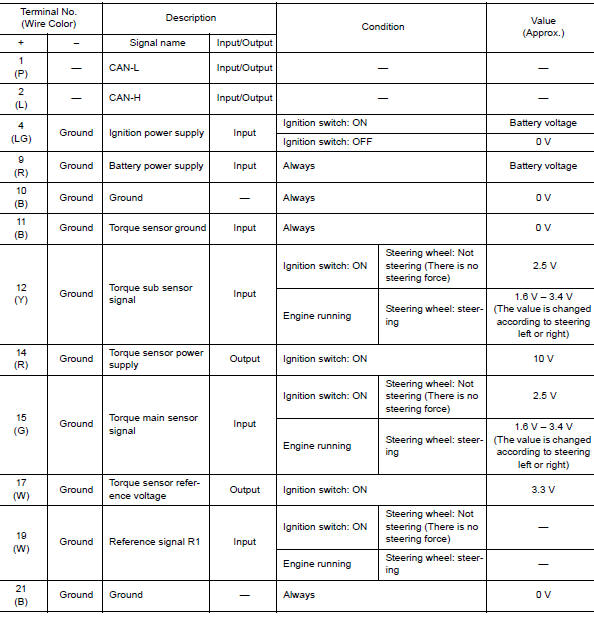

Physical values

Physical values

Fail-Safe

Protection Function

EPS control unit decreases the output signal to EPS motor during continuous extreme use of the power steering function (e.g., full steering) for protection of the EPS motor and EPS control unit (Overload protection control).

DTC Inspection Priority Chart

When multiple DTCs are detected simultaneously, check one by one depending on the following priority list.

DTC Inspection Priority Chart

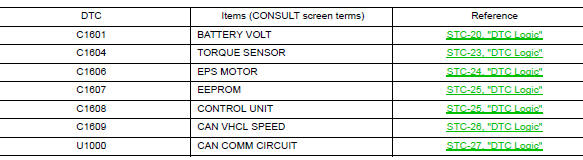

DTC Index

DTC Index

Diagnosis system (EPS control unit)
CONSULT Function FUNCTION CONSULT can display each diagnostic item using the diagnostic test modes shown following Diagnostic test mode Function ECU identification The p ...
