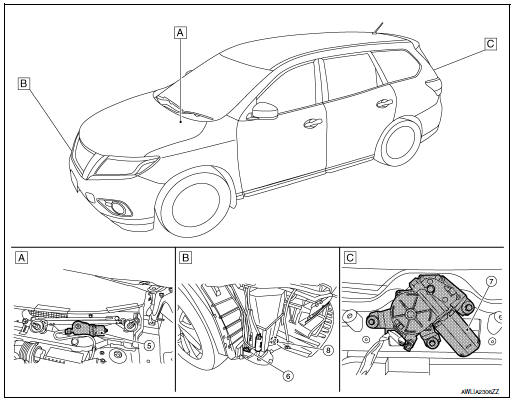

Component Parts Location

Component Parts Location

View of cowl area (with cowl top cover removed)
RH front of vehicle (with front bumper fascia removed)
View with back door finisher removed

No.	Component	Function
1	Combination switch (Wiper and washer switch)	Refer to WW-8, "FRONT WIPER AND WASHER SYSTEM : System Description". Refer to BCS-76, "Removal and Installation".
2	Combination meter	Transmits the vehicle speed signal to BCM via CAN communication.
3	IPDM E/R	Controls the integrated relay according to the request (via CAN communication) from BCM. Performs the auto stop control of the front wiper. Refer to WW-6, "Component Parts Location"
4	BCM	Judges each switch status by the combination switch reading function. Requests (via CAN communication) the front wiper relay and the front wiper HI/LO relay ON to IPDM E/R. Supplies power to the rear wiper motor. Performs the auto stop control of the rear wiper. Refer to WW-6, "Component Parts Location".
5	Front wiper motor	Refer to WW-7, "Front wiper motor".
6	Front and rear washer motor	Refer to WW-7, "Washer pump".
7	Rear wiper motor	Refer to WW-7, "Rear wiper motor".
8	Washer Fluid Level Switch	Transmits the washer fluid level switch signal to the combination meter.

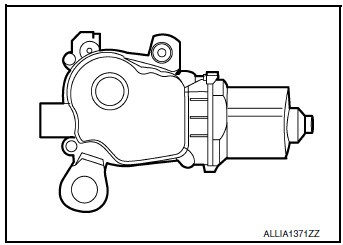

Front wiper motor

Controls front wiper operation with IPDM E/R control.
Transmits front wiper stop position signal to IPDM E/R.

Front wiper motor

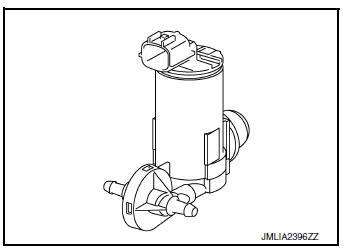

Washer pump

Washer fluid is sprayed according to washer switch states.
Switching between front washer and rear washer is performed according to the voltage polarity change to washer pump.

Washer pump

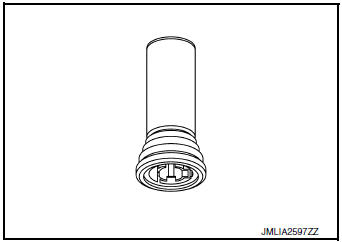

Washer fluid level switch

Detects that washer fluid level is low and transmits washer fluid level switch signal to combination meter.

Washer fluid level switch

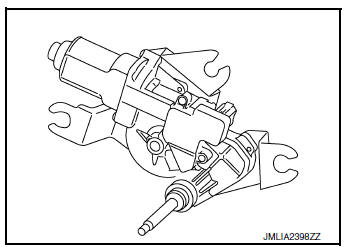

Rear wiper motor

Controls rear wiper operation with BCM control.
Transmits rear wiper stop position signal to BCM.

Rear wiper motor

System

FRONT WIPER AND WASHER SYSTEM FRONT WIPER AND WASHER SYSTEM : System Diagram FRONT WIPER AND WASHER SYSTEM : System Description OUTLINE FRONT WIPER CONTROL (BASIC) BCM detects the co ...
