Nissan Rogue Service Manual: Cluster lid A

Removal and Installation

REMOVAL

  1.  Remove instrument lower panel LH. Refer to IP-22, "Removal and Installation".
  2.  Remove instrument finisher A. Refer to IP-15, "INSTRUMENT FINISHER A : Removal and Installation".
  3.  Remove instrument finisher B. Refer to IP-16, "INSTRUMENT FINISHER B : Removal and Installation".

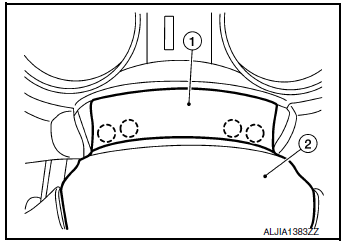

  4.  Release gap hider (1) pawls from the steering column upper cover (2).

: Pawl

Removal

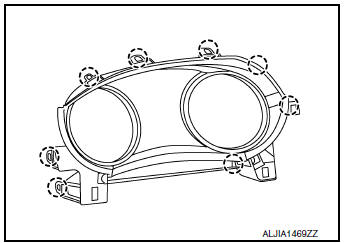

  1. Release pawls using a suitable tool and remove cluster lid A.

    : Pawl

Removal

INSTALLATION

Installation is in the reverse order of removal.
