Nissan Rogue Owners Manual: Changing engine oil
Changing engine oil
- Park the vehicle on a level surface and apply the parking brake.
- Start the engine and let it idle until it reaches operating temperature, then turn it off.

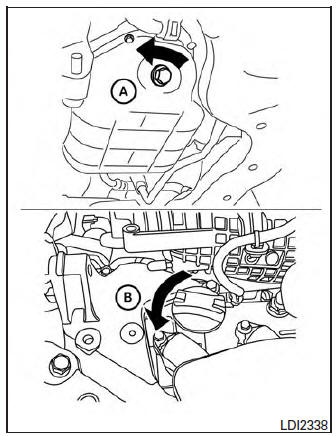

- Remove the oil filler cap B by turning it counterclockwise.
- Place a large drain pan under the drain plug A .
- Remove the drain plug A with a wrench by turning it counterclockwise and completely drain the oil.
If the oil filter is to be changed, remove and replace it at this time. See “Changing engine oil filter” in this section.
- Waste oil must be disposed of properly.
- Check your local regulations.
WARNING
|
| CAUTION Be careful not to burn yourself. The engine oil may be hot. |
- Clean and reinstall the drain plug and a new
washer. Securely tighten the drain plug with
a wrench. Do not use excessive force.
Drain plug tightening torque: 22 - 29 ft-lb (29 - 39 N·m)
- Refill engine with recommended oil through
the oil filler opening, then install the oil filler
cap securely.
For additional information, refer to “Recommended fluids/lubricants and capacities” in the “Technical and consumer information” section of this manual for drain and refill capacity.
The drain and refill capacity depends on the oil temperature and drain time. Use these specifications for reference only. Always use the dipstick to determine when the proper amount of oil is in the engine.
- Start the engine. Check for leakage around the drain plug and oil filter. Correct as required.
- Turn the engine off and wait more than 10 minutes. Check the oil level with the dipstick. Add engine oil if necessary.
