Nissan Rogue Service Manual: Service data and specifications (SDS)

Nissan Rogue Service Manual / Suspension / Front Suspension / Service data and specifications (SDS)

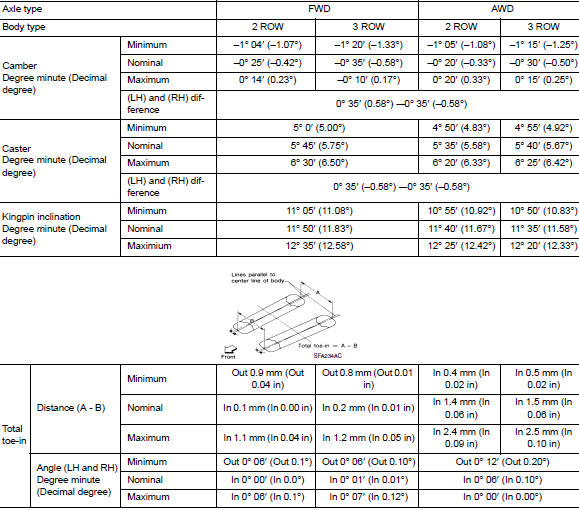

Wheel Alignment (Unladen*1)

Wheel Alignment (Unladen*1)

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Ball Joint

Ball Joint

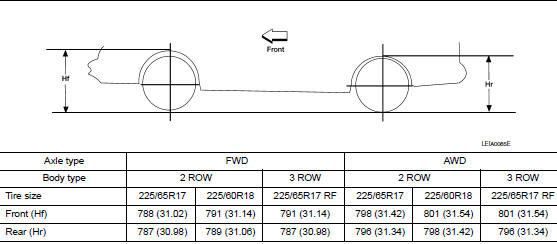

Wheelarch Height (Unladen*)

Wheelarch Height

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
