Nissan Rogue Service Manual: Brake pedal
Inspection
BRAKE PEDAL HEIGHT

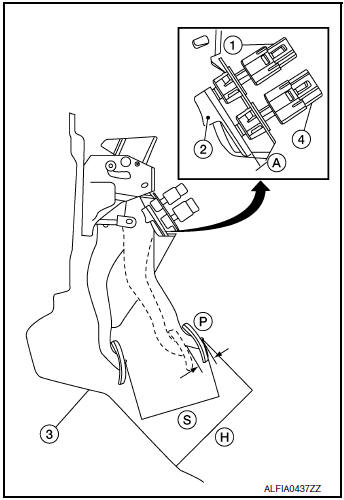

Check the brake pedal height (H) between the dash lower panel (3) and the brake pedal upper surface.
CAUTION: Check the brake pedal height with the floor trim removed.
| Brake pedal height (H) from dash lower panel (3) | Refer to BR-54, "Brake Pedal". |
| Clearance (A) between brake pedal stopper bracket (2), stop lamp switch (4) and brake pedal position switch (1) contact ends | Refer to BR-54, "Brake Pedal". |
| Brake pedal full stroke (S) | Refer to BR-54, "Brake Pedal". |
| Brake pedal play (P) | Refer to BR-54, "Brake Pedal". |
Basic inspection
...
Brake fluid
Inspection
BRAKE FLUID LEVEL
Make sure that the brake fluid level in the reservoir tank is
between
the MAX and MIN lines.
Visually check around the reservoir tank for brake flu ...
