Nissan Rogue Service Manual: Brake fluid

Nissan Rogue Service Manual / Brakes / Brake System / Basic inspection / Brake fluid

Inspection

BRAKE FLUID LEVEL

Make sure that the brake fluid level in the reservoir tank is between the MAX and MIN lines.
Visually check around the reservoir tank for brake fluid leakage.
If the brake fluid level is excessively low, check the brake system for leakage.
If brake warning lamp remains illuminated after parking brake pedal is released, check the brake system for brake fluid leakage.

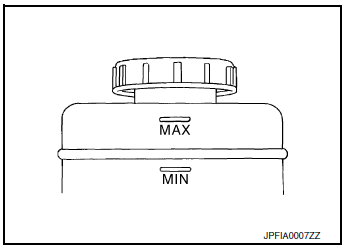

Brake fluid level

BRAKE LINE

Check brake line (tubes and hoses) for cracks, deterioration or other damage. Replace any damaged parts.
Check for brake fluid leakage by fully depressing brake pedal while engine is running.

CAUTION: If brake fluid leakage occurs around joints, retighten or replace damaged parts as necessary.

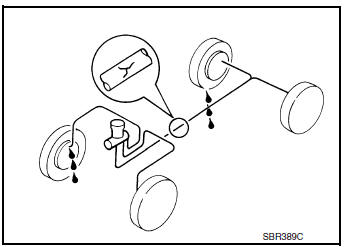

Brake line
