Nissan Rogue Owners Manual: Approach warning
Approach warning

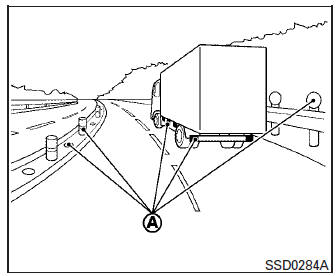

NOTE: The warning chime may sound and the FCW indicator may blink when the distance sensor detects vehicles in other lanes A or objects on the side of the road A . This may cause the FCW system to operate inappropriately.
The distance sensor may detect these objects when the vehicle is driven on winding roads, narrow roads, hilly roads, or when entering or exiting a curve.
Also, the sensor sensitivity can be affected by vehicle operation (steering maneuver or driving position in the lane) or traffic or vehicle condition (for example, if a vehicle is being driven with some damage).
Forward Collision Warning (FCW) system
(if so equipped)
The Forward Collision Warning (FCW) system
will warn the driver by flashing the FCW indicator
light and providing a warning chime when your
vehicle is getting close to the vehicle ahead in the
tra ...
Precautions on FCW system
WARNING
The FCW system is intended to warn
you before a collision occurs; it cannot
prevent a collision. It is the driver’s responsibility
to stay alert, drive safely
...
