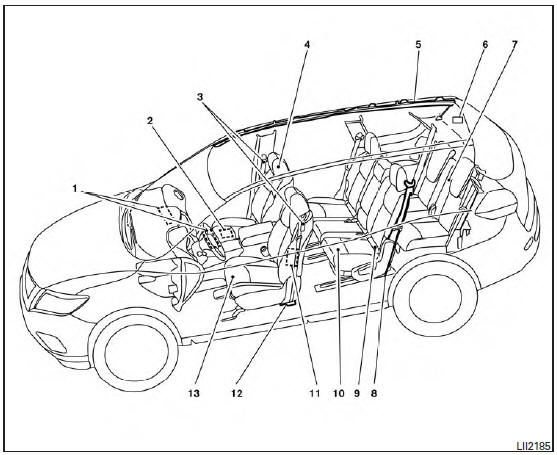

Air bags, seat belts and child restraints

  1. Supplemental front-impact air bags
  2.  Occupant classification sensor (weight sensor)
  3.  Seat belts
  4.  Head restraints/headrests
  5.  Roof-mounted curtain side-impact and rollover supplemental air bag
  6.  2nd row center position top tether strap (located on ceiling)
  7. Folding 3rd row bench (if so equipped)
  8.  2nd row outboard seat top tether strap anchor (located on bottom of seatback)
  9.  LATCH (Lower Anchors and Tethers for CHildren)
  10.  Folding 2nd row bench
  11.  Front seat-mounted side-impact supplemental air bag
  12.  Seat belt with pretensioner
  13.  Seats

See the page number indicated in parentheses for operating details.
