Nissan Rogue Service Manual: Removal and installation
EXHAUST SYSTEM

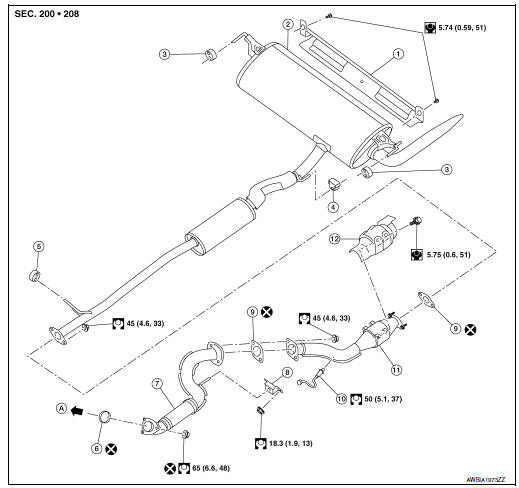

Exploded View

- Exhaust diffuser
- Muffler assembly
- Mounting rubber
- Mounting rubber
- Mounting rubber
- Ring gasket
- Front exhaust tube
- Mounting rubber
- Exhaust gasket
- Oxygen sensor 2
- Center exhaust tube
- Catalyst shroud
- To exhaust manifold and three way
catalyst
Removal and Installation
WARNING:
- Perform the procedures with the exhaust system fully cooled
down to avoid injury from the hot
exhaust system.
- Be careful not to cut your hand on the catalyst shroud edge.
CAUTION:
Use genuine NISSAN exhaust system parts or equivalent, which are specifically
designed for heat
resistance, corrosion resistance, and shape.
REMOVAL
- Remove exhaust system components using power tool.
- Remove heated oxygen sensor 2 using suitable tool.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Do not reuse exhaust gasket.
- Do not reuse nuts securing front exhaust tube to exhaust
manifold and three way catalyst.
- Do not allow foreign substances to contact new exhaust gasket.
- Be sure to install ring gasket to prevent catching when
tightening.
- Do not reuse ring gasket.
- Ensure flexible portion of front exhaust tube is free from
deformation.
- During installation, take care not to deform mounting rubbers.
After installing, the mounting rubbers
shall show no excessive movement, twisting, or elongation. To facilitate
installation, a neutral detergent
may be used.
- Mounting rubbers installed at either side of muffler are to be
installed in accordance with paint
marks. Mounting rubber at LH side is installed with white paint mark facing
forward. Mounting rubber
at RH side is installed with white paint mark facing rearward.
- Do not spray exhaust tubes, muffler, heated oxygen sensor 2, or
catalyst shroud with anti-corrosive
wax.
- If catalyst shroud is badly deformed, repair or replace it. If
deposits, such as mud, pile up on the catalyst
shroud, remove them.
- When installing catalyst shroud, avoid large gaps or
interference between catalyst shroud and
exhaust pipe.
- Temporarily tighten fasteners and check each part for
interference with other components, and then
tighten fasteners to specification.
- Discard any heated oxygen sensor 2 which has been dropped.
- Before installing a new heated oxygen sensor 2, clean exhaust
system threads using Tool.
Oxygen sensor thread cleaner : J-43897-18
- Tighten heated oxygen sensor 2 using suitable tool. Do not use impact
wrench.
- Do not over tighten heated oxygen sensor 2. Doing so may cause
damage to the heated oxygen sensor
2, resulting in the “MIL� coming on.
- Remove deposits from the sealing surface of each connection.
Connect them securely to avoid
exhaust gas leaks.
Inspection
INSPECTION AFTER INSTALLATION
- Check clearance between tail tube and rear bumper is even.
- With engine running, check exhaust tube joints for gas leakage and
unusual noises.
- Check to ensure that mounting brackets and mounting rubbers are
installed properly and free from undue
stress. Improper installation could result in excessive noise and vibration.
EXHAUST SYSTEM
Inspection
Check exhaust pipes, muffler, and mounting for improper attachment,
leakage, cracks, damage or deterioration.
If anything is found, repair or replace damaged par ...
