Nissan Rogue Service Manual: VDC off switch
Removal and Installation
REMOVAL
- Remove the instrument lower panel LH. Refer to IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal and Installation".

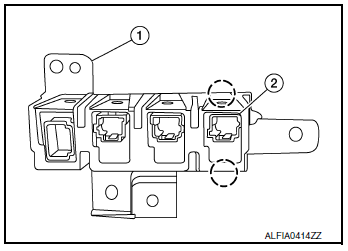

- Release pawls using suitable tool and remove the VDC OFF switch (2) from the upper switch carrier (1).
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
