Nissan Rogue Service Manual: Symptom diagnosis

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

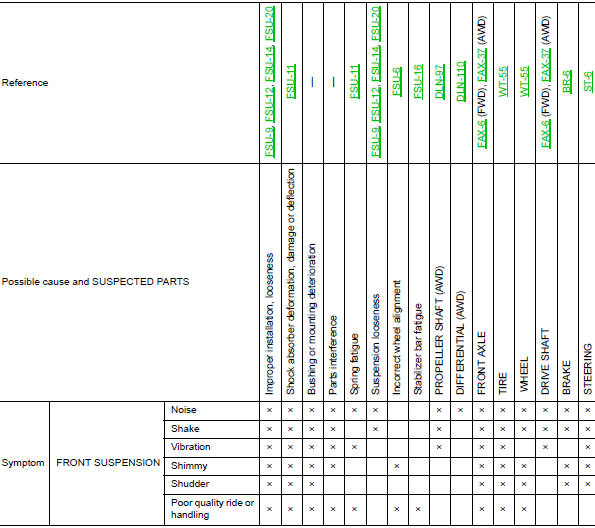

NVH Troubleshooting Chart

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

NVH Troubleshooting Chart

×: Applicable
