Nissan Rogue Service Manual: Symptom diagnosis
OVERHEATING CAUSE ANALYSIS

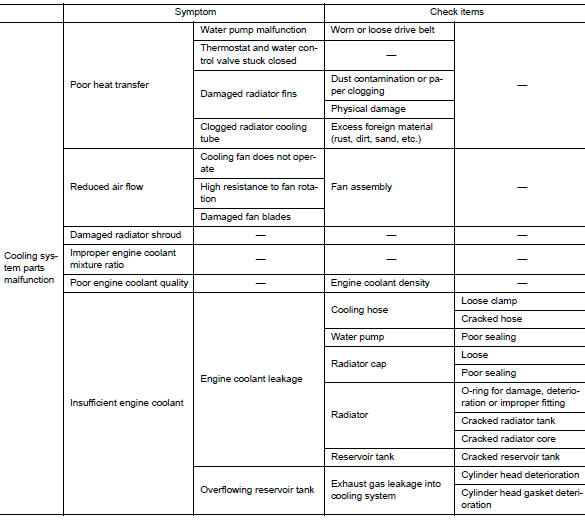

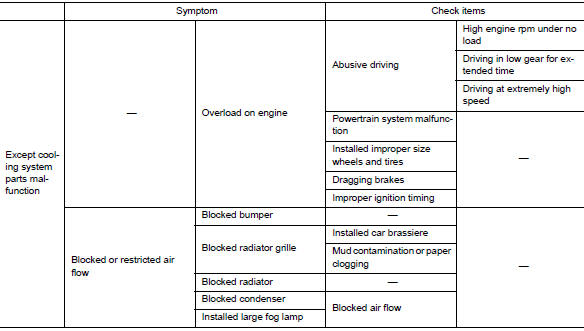

Troubleshooting Chart
System description
DESCRIPTION
Engine Cooling System
Thermostat
Water outlet
Cylinder block (Thermostat housing)
Water inlet
Radiator
Water pump
Cylinder block
Cylinde ...
