NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS
Symptom Table
NOTE:
- Before performing the diagnosis in the following table, check “SEC-150, "Work Flow"”.
- Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and check each symptom.
- If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column in this order.
CONDITIONS OF VEHICLE (OPERATING CONDITIONS)
- Mechanical key is not inserted into key cylinder.
- Ignition knob switch is not depressed.
VEHICLE SECURITY SYSTEM

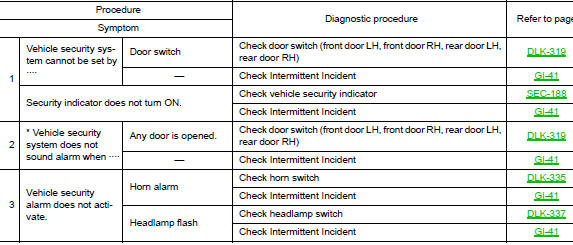

Symptom Table
*: Check the system is in the armed phase.
DTC/circuit diagnosis
P1610 LOCK MODE
Description
ECM forcibly switches to the mode that inhibits engine start, when engine
start operation is performed 5 times
or more while communication between ECM and BCM is not n ...
Removal and installation
NATS ANTENNA AMP.
Removal and Installation
REMOVAL
Remove the steering column covers. Refer to IP-17, "Removal and
Installation".
Disconnect the harness connector from ...
