Nissan Rogue Service Manual: Sunshade
Removal and Installation
REMOVAL
- Remove the moonroof unit assembly. Refer to RF-53, "Removal and Installation".

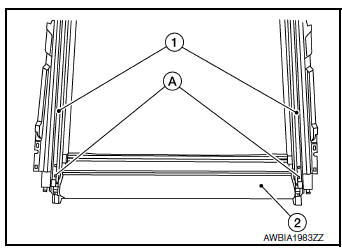

- Place the moonroof unit assembly (1) on a flat surface upside down and remove sunshade (2) screws (A).
- Manually move sunshade motor (1) using suitable tool (2).
- After manually moving sunshade with suitable tool, gently pull reward on sunshade to reveal cable.
- While holding black plastic part on the cable end push sunshade toward opposite end releasing from the cable.
- Remove sunshade.
INSTALLATION
Installation is in the reverse order of removal.
Moonroof unit assembly
Inspection
WIND DEFLECTOR
Open glass lid fully.
Visually check for proper installation, damaged/deteriorated components,
or foreign objects within mechanism.
Correct as required for smooth ...
Sunshade motor assembly
Removal and Installation
REMOVAL
Remove the headlining. Refer to. INT-30, "Removal and Installation".
Disconnect the harness connector (A) from the sunshade motor
assemb ...
