Nissan Rogue Service Manual: Service data and specifications (SDS)

Nissan Rogue Service Manual / Engine / Engine Lubrication System / Service data and specifications (SDS)

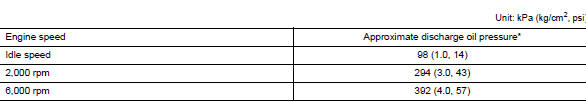

Oil Pressure

Oil Pressure

*: Engine oil temperature at 80°C (176°F)

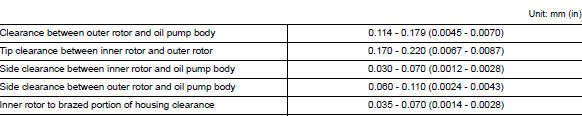

Oil Pump

Oil Pump

Relief Valve

Relief Valve

Oil Capacity

Oil Capacity

Oil pump
Exploded View Front cover (Oil pump body united)  Outer rotor Inner rotor  Oil pump cover Regulator valve Regulator valve spring  Regulator valve plug CAUTION ...
