Nissan Rogue Service Manual: Service data and specifications (SDS)
General Specification

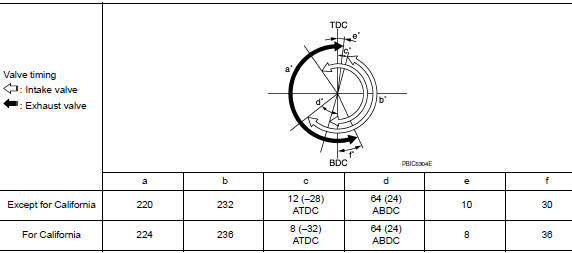

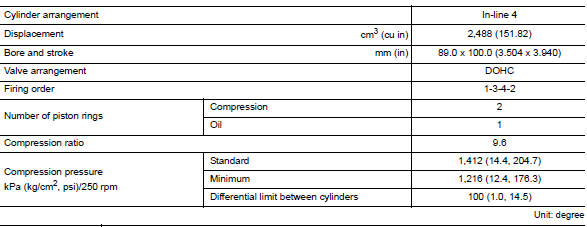

GENERAL SPECIFICATIONS
( ): Valve timing control “ON”
Drive belt
Spark Plug
Intake Manifold
Exhaust Manifold

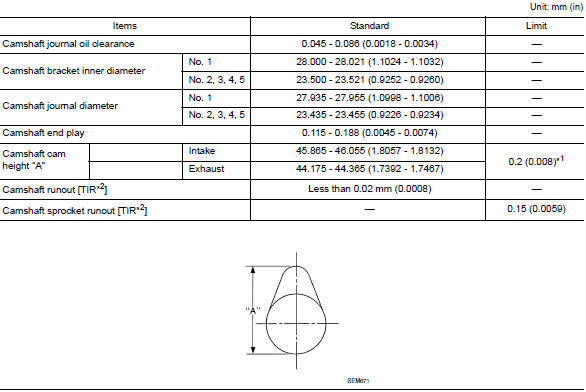

Camshaft
*1: Cam wear limit
*2: Total indicator reading
VALVE LIFTER
VALVE CLEARANCE
*: Approximately 80°C (176°F)

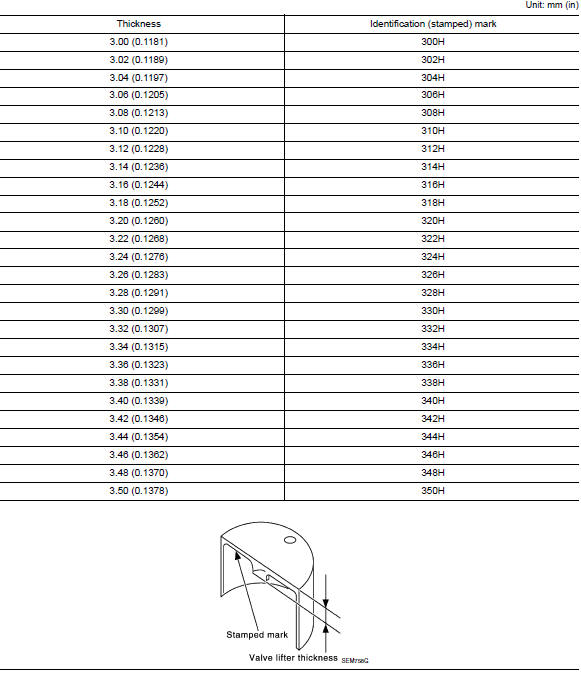

AVAILABLE VALVE LIFTER
Cylinder Head
CYLINDER HEAD
VALVE DIMENSIONS

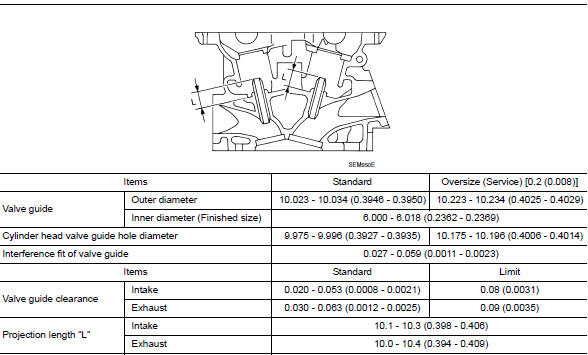

VALVE GUIDE

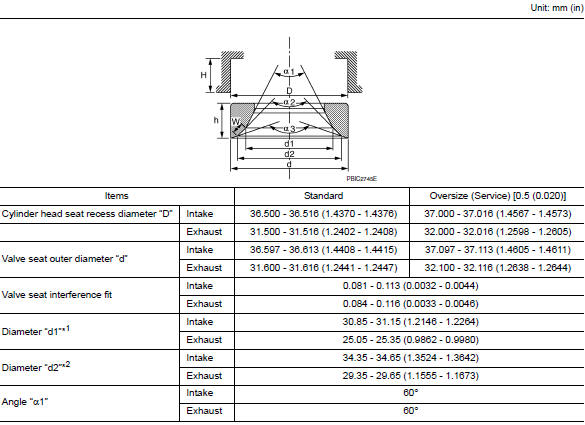

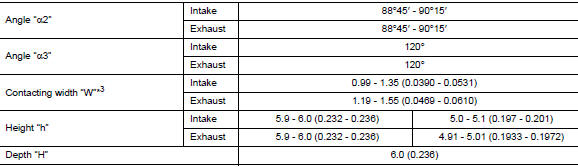

VALVE SEAT
*1: Diameter made by intersection point of conic angles “α1” and “α2”
*2: Diameter made by intersection point of conic angles “α2” and “α3”
*3: Machining data

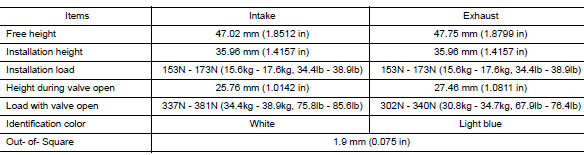

VALVE SPRING

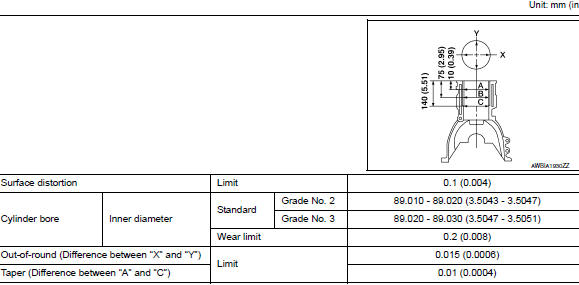

Cylinder Block

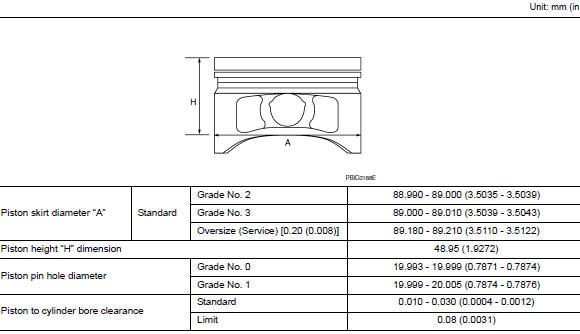

AVAILABLE PISTON
PISTON RING

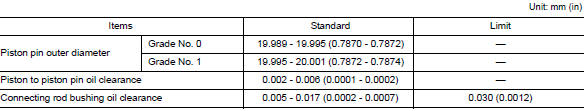

PISTON PIN

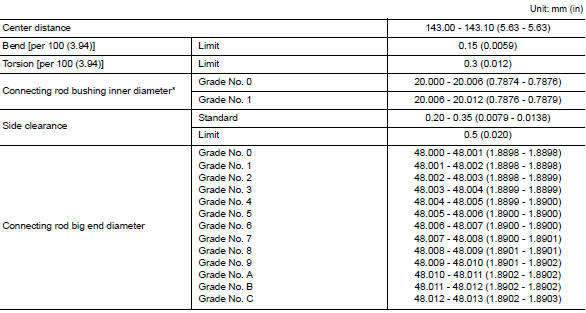

CONNECTING ROD
*: After installing in connecting rod

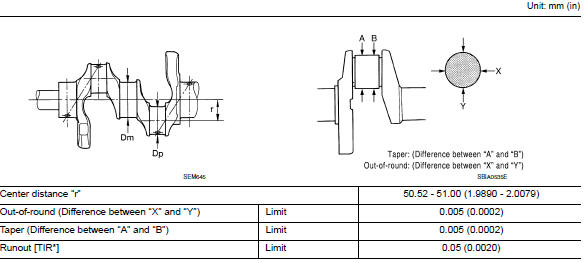

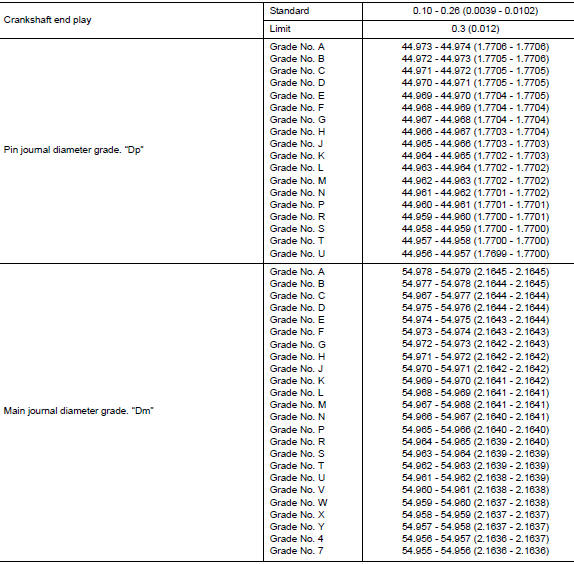

CRANKSHAFT
*: Total indicator reading

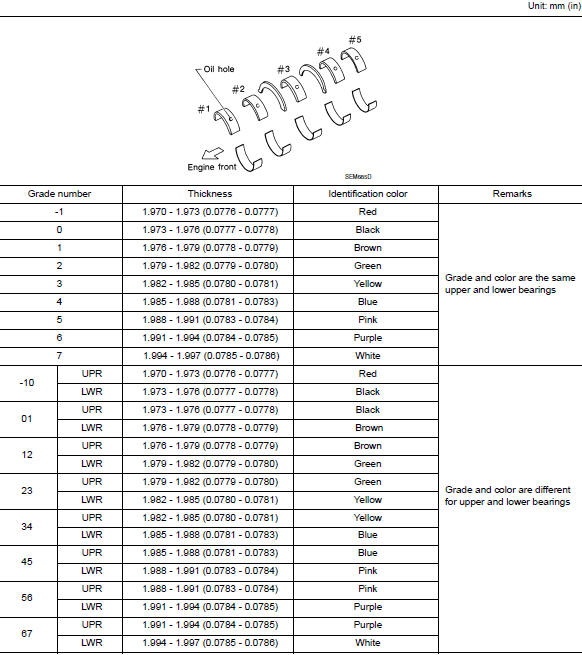

Main Bearing
UNDERSIZE

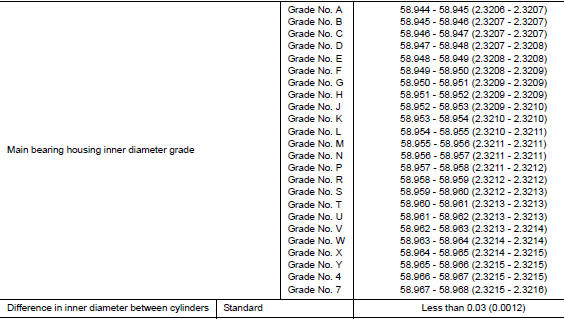

MAIN BEARING OIL CLEARANCE

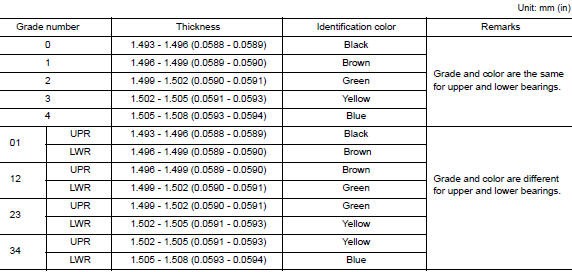

Connecting Rod Bearing
UNDERSIZE
CONNECTING ROD BEARING OIL CLEARANCE
How to select piston and bearing
DESCRIPTION
Selection points
Selection parts
Selection items
Selection methods
Between cylinder block to
crankshaft
Main bearing
Main bearing grade (bearing
thick ...
