Nissan Rogue Service Manual: Preparation
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
|
Tool number (TechMate No.) Tool name |
Description |
|
| — (J-39570) Chassis Ear |
|
Locating the noise |
| — (J-50397) NISSAN Squeak and Rattle Kit |
|
Repairing the cause of noise |
| — (J-46534) Trim Tool Set |
|
Removing trim components |
Commercial Service Tool
|
(TechMate No.) Tool name |
Description |
|
| (J-39565) Engine Ear |
|
Locating the noise |
| ( — ) Hook and Pick Tool |
|
Removes snap rings |

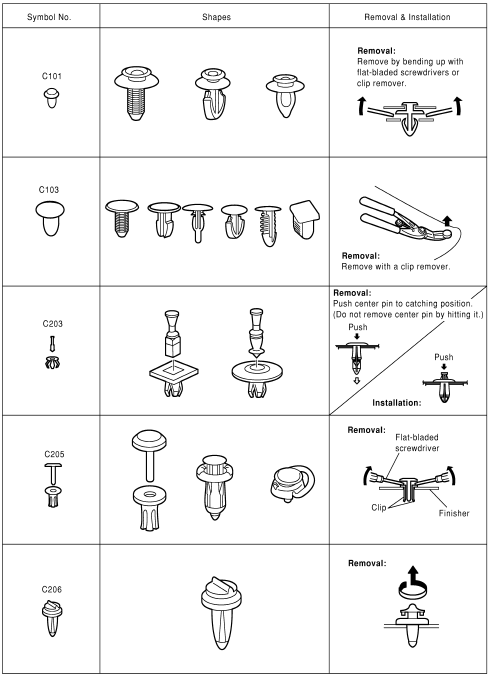

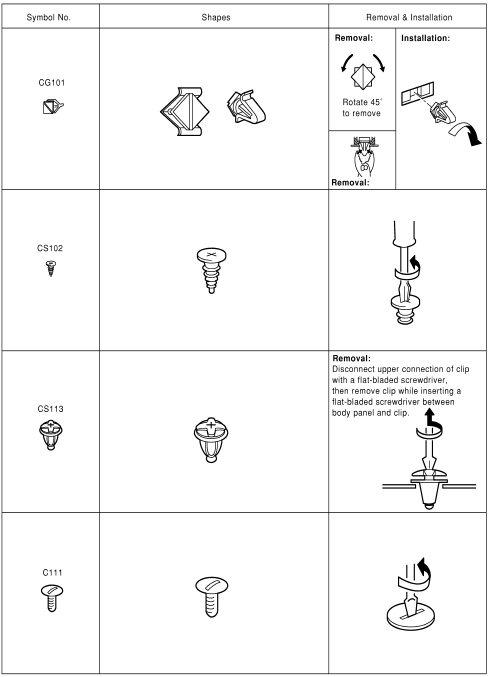

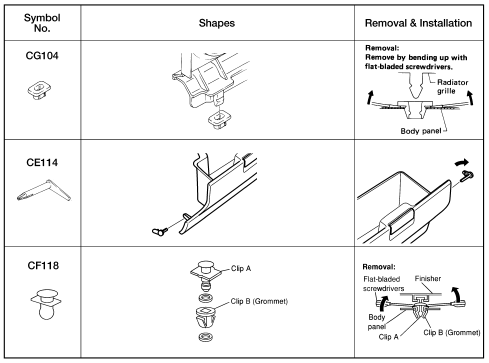

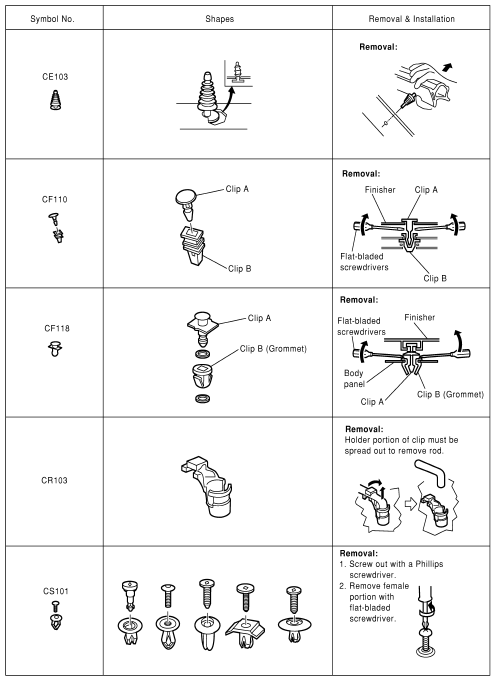

CLIP LIST
Descriptions for Clips
Replace any clips which are damaged during removal or installation.
Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONE ...
Wiring diagram
...
Other materials:
Encoder circuit
Description
Detects condition of the front power window motor LH operation and transmits
to main power window and door
lock/unlock switch as pulse signal.
Component Function Check
1.CHECK ENCODER OPERATION
Check front driver side door glass perform AUTO open/close operation normally
when ma ...
Map lamp assembly
Exploded View
Map lamp assembly bracket
(with moonroof)
Headlining
Map lamp assembly
Map lamp assembly bracket
(without moonroof)
Dual magnet
Metal clip
Pawl
Removal and Installation
REMOVAL
Lower front edge of map lamp assembly (1) down from the
hea ...
Luggage room lamp
Removal and Installation
REMOVAL
Insert a suitable tool (A) into the gap between the luggage lower
finisher (RH) (2) and the top of luggage room lamp (1) to release
the pawl.
: Pawl
Disconnect the harness connector from the luggage room lamp and remove.
INSTALLATION
Installati ...
