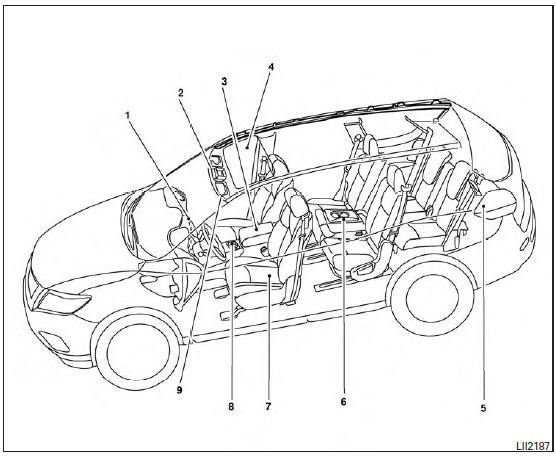

Nissan Rogue Owners Manual: Passenger compartment
- Glove box
- Map lights
- Console box
- Power panoramic moonroof (if so equipped)
- Luggage hooks
- Center armrest (2nd row)
- Seats
- Cup holders
- Sun visors
See the page number indicated in parentheses for operating details.
