Removal and Installation

REMOVAL

Remove the center console assembly. Refer to IP-18, "Removal and Installation".
Remove shift selector. Refer to TM-194, "Removal and Installation".
Remove the bolts from the parking brake front cable mount. Refer to PB-7, "Exploded View".
Loosen the adjusting nut. Refer to PB-7, "Exploded View".
NOTE: It is not necessary to remove the parking brake front cable.

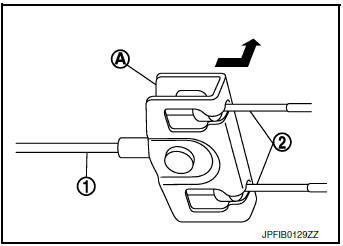

Pull equalizer (A) of the parking brake front cable (1) in a rearward direction and then push upward to separate each parking brake rear cable (2) from the parking brake front cable (1).
CAUTION: To prevent damage to the parts, do not bend the parking brake cables.

Removal

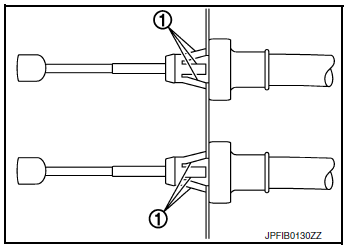

Press the pawl (1) to remove each parking brake rear cable from the vehicle.

Removal

Remove the parking brake shoes, and separate the parking brake rear cable from the toggle lever. Refer to PB-11, "Removal and Installation".

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Do not reuse the adjusting nut if the nut is removed.

Inspect and adjust the parking brake pedal. Refer to PB-4, "Inspection and Adjustment".
Inspect and adjust the parking brake shoes. Refer to PB-6, "Inspection and Adjustment".
