DTC Description

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms (Trouble diagnosis content)	DTC detecting condition
P2138	APP SENSOR (Throttle/pedal position sensor/switch ″D″ / ″E″ voltage correlation)	Rationally incorrect voltage is sent to ECM compared with the signals from APP sensor 1 and APP sensor 2.

POSSIBLE CAUSE

Harness or connectors (APP sensor 1 or 2 circuit is open or shorted.)
Accelerator pedal position sensor (APP sensor 1 or 2)
Sensor power supply 2 circuit

FAIL-SAFE

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition. So, the acceleration will be poor.

DTC CONFIRMATION PROCEDURE

1.CHECK DTC PRIORITY

If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.

Is applicable DTC detected? YES >> Perform diagnosis of applicable. Refer to EC-379, "DTC Description".

NO >> GO TO 2.

2.PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.

Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.

>> GO TO 3.

3.PERFORM DTC CONFIRMATION PROCEDURE

Start engine and let it idle for 1 second.
Check DTC.

Is DTC detected? YES >> Proceed to EC-449, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK DTC PRIORITY

If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.

Is applicable DTC detected? YES >> Perform diagnosis of applicable. Refer to EC-379, "DTC Description".

NO >> GO TO 2.

2.CHECK APP SENSOR 1 POWER SUPPLY

Turn ignition switch OFF.
Disconnect accelerator pedal position (APP) sensor harness connector.
Turn ignition switch ON.
Check the voltage between APP sensor harness connector and ground.

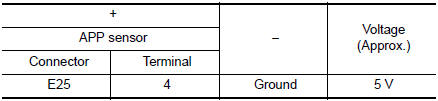

Check APP sensor 1 power supply

Is the inspection result normal? YES >> GO TO 4.

NO >> GO TO 3.

3.CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT

Turn ignition switch OFF.
Disconnect ECM harness connector.
Check the continuity between APP sensor harness connector and ECM harness connector.

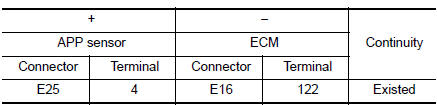

Check APP sensor 1 power supply circuit

Also check harness for short to ground.

Is the inspection result normal? YES >> Perform the trouble diagnosis for power supply circuit.

NO >> Repair or replace error-detected parts.

4.CHECK APP SENSOR 2 POWER SUPPLY

Check the voltage between APP sensor harness connector and ground.

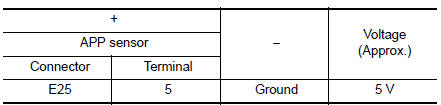

Check APP sensor 2 power supply

Is the inspection result normal? YES >> GO TO 6.

NO >> GO TO 5.

5.CHECK SENSOR POWER SUPPLY 2 CIRCUIT

Perform EC-484, "Diagnosis Procedure".

Is inspection result normal? YES >> Perform the trouble diagnosis for power supply circuit.

NO >> Repair or replace error-detected parts.

6.CHECK APP SENSOR GROUND CIRCUIT

Turn ignition switch OFF.
Disconnect ECM harness connector.
Check the continuity between APP sensor harness connector and ECM harness connector.

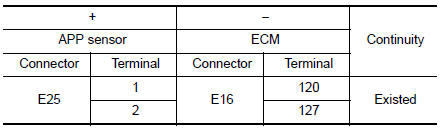

Heck APP sensor ground circuit

Also check harness for short to power.

Is the inspection result normal? YES >> GO TO 7.

NO >> Repair or replace error-detected parts.

7.CHECK APP SENSOR INPUT SIGNAL CIRCUIT

1. Check the continuity between APP sensor harness connector and ECM harness connector.

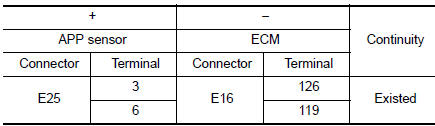

Check APP sensor input signal circuit

Also check harness for short to ground and to power.

Is the inspection result normal? YES >> GO TO 8.

NO >> Repair or replace error-detected parts

8.CHECK APP SENSOR

Check the APP sensor. Refer to EC-451, "Component Inspection".

Is the inspection result normal? YES >> GO TO 9.

NO >> Replace accelerator pedal assembly. Refer to ACC-3, "Removal and Installation".

9.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> INSPECTION END

Component Inspection

1.CHECK ACCELERATOR PEDAL POSITION SENSOR

Turn ignition switch OFF.
Reconnect all harness connectors disconnected.
Turn ignition switch ON.
Check the voltage between ECM harness connector terminals as per the following conditio

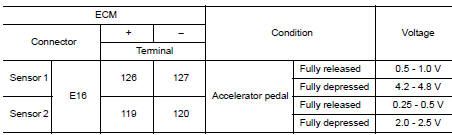

Check accelerator pedal position sensor

Is the inspection result normal?

YES >> INSPECTION END

NO >> Replace accelerator pedal assembly. Refer to ACC-3, "Removal and Installation".
