DTC Description

DTC DETECTION LOGIC

DTC

CONSULT screen terms (Trouble diagnosis content)

DTC detection condition

P0711

FLUID TEMP SENSOR A (Transmission Fluid Temperature Sensor A Circuit Range/Performance)

When any of 1 or 2 is satisfied:

Under the following diagnosis conditions, CVT fluid temperature does not rise to 10°C (50°F) after driving for a certain period of time with the TCM-received fluid temperature sensor value between − 40°C (−40°F) and 9°C (48.2°F).

TCM power supply voltage: More than 11 V
CAN communication is normal
Engine speed: 450 rpm or more
Accelerator pedal position: 3 deg. or more
Vehicle speed: 10 km/h (7 MPH) or more
U0100, P0705 and P0706 are not detected.
Selector lever: “D” position

When the condition of the final judgment is satisfied after satisfying that of the provisional judgment:

Provisional judgment: All of the following conditions are satisfied within 2 seconds after the ignition switch is turned ON.

U0073, U0100, P0712 and P0713 are not detected.
CAN communication is normal.
TCM power supply voltage: More than 11 V

The difference between CVT fluid temperature and engine coolant temperature is 55°C (131°F) or more, or −27°C (−16°F) or less.

Final judgment: When all of the following conditions are satisfied and this state is maintained for 300 seconds:

ECM is normal.
Provisional judgment is satisfied.

POSSIBLE CAUSE

CVT fluid temperature sensor

FAIL-SAFE

Engine coolant temperature when engine start: Temp. ≥ 10°C (50°F)

Start is slow
Acceleration is slow

Engine coolant temperature when engine start: −35°C (−31°F) ≤ Temp. < 10°C (50°F)

Selector shock is large
Start is slow
Acceleration is slow

Engine coolant temperature when engine start: Temp. < −35°C (−31°F)

Selector shock is large
Start is slow
Acceleration is slow

DTC CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

1.PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.INSPECTION START

Is it necessary to erase permanent DTC? YES >> GO TO 3.

NO >> GO TO 7.

3.CHECK DTC (ECM AND TCM)

Check the DTC.

Is any DTC other than “P0711” detected? YES >> Check DTC detected item. Refer to EC-93, "DTC Index" (ECM), EC-93, "DTC Index" (TCM).

NO >> GO TO 4.

4.PERFORM DTC CONFIRMATION PROCEDURE (PART 1)

TESTING CONDITION:

While performing the following procedure, do not add fuel.
Before performing the following procedure, check that fuel level is between 1/4 and 4/4.
Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.

With CONSULT

Move the vehicle to a cool place.
NOTE: Cool the vehicle in an environment of ambient air temperature between −10°C (14°F) and 35°C (95°F).
Turn ignition switch OFF and leave the vehicle for 12 hours.
CAUTION: Never turn ignition switch ON during this procedure.

NOTE: The vehicle must be cooled with the food open.
Turn ignition switch ON.
CAUTION: Never start the engine.
Select “Data Monitor” in “TRANSMISSION”.
Select “FLUID TEMP”.
Record CVT fluid temperature.
Start engine and let it idle for 5 minutes or more.
CAUTION: Never turn ignition switch OFF during idling.
Check 1st trip DTC.

With GST

Move the vehicle to a cool place.
NOTE: Cool the vehicle in an environment of ambient air temperature between −10°C (14°F) and 35°C (95°F).
Turn ignition switch OFF and leave the vehicle for 12 hours.
CAUTION: Never turn ignition switch ON during this procedure.

NOTE: The vehicle must be cooled with the food open.
Start engine and let it idle for 5 minutes or more.
CAUTION: Never turn ignition switch OFF during idling.
Check 1st trip DTC.

Is “P0711” detected? YES >> Go to TM-119, "Diagnosis Procedure".

NO-1 (With CONSULT)>>GO TO 5.

NO-2 (With GST)>>GO TO 6.

5.CHECK CVT FLUID TEMPERATURE

With CONSULT

Select “Data Monitor” in “TRANSMISSION”.
Select “FLUID TEMP”.

Is the value of “FLUID TEMP” 10°C (50°F) or more? YES >> INSPECTION END

NO >> GO TO 6.

6.PERFORM DTC CONFIRMATION PROCEDURE (PART 2)

With CONSULT

Drive the vehicle for the total minutes specified in the Driving time column below with the following conditions satisfied.

Selector lever : “D” position
Accelerator pedal position : 1.0/8 or more
Vehicle speed : 10 km/h (7 MPH) or more

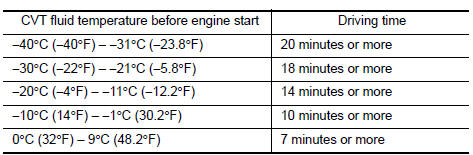

Perform DTC confirmation procedure (part 2)

Stop the vehicle.
Check the first trip DTC.

With GST

Drive the vehicle and maintain the following conditions for 20 minutes or more.

Selector lever : “D” position
Accelerator pedal position : 1.0/8 or more
Vehicle speed : 10 km/h (7 MPH) or more

Stop the vehicle.
Check the first trip DTC.

Is “P0711” detected? YES >> Go to TM-119, "Diagnosis Procedure".

NO-1 >> To check malfunction symptom before repair: Refer to GI-41, "Intermittent Incident".

NO-2 >> Confirmation after repair: INSPECTION END

7.PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

Turn ignition switch OFF and cool the engine.
Turn ignition switch ON.
CAUTION: Never start the engine.
Select “Data Monitor” in “TRANSMISSION”.
Select “FLUID TEMP”.
Record CVT fluid temperature.
Start the engine and wait for at least 2 minutes.
Drive the vehicle for the total minutes specified in the Driving time column below with the following conditions satisfied.

Selector lever : “D” position
Accelerator pedal position : 1.0/8 or more
Vehicle speed : 10 km/h (7 MPH) or more

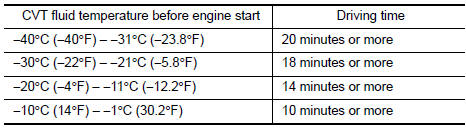

Perform DTC confirmation procedure

Stop the vehicle.
Check the first trip DTC.

With GST

Turn ignition switch OFF and cool the engine.
Start the engine and wait for at least 2 minutes.
Drive the vehicle and maintain the following conditions for 20 minutes or more.

Selector lever : “D” position
Accelerator pedal position : 1.0/8 or more
Vehicle speed : 10 km/h (7 MPH) or more

Stop the vehicle.
CAUTION: Never turn ignition switch OFF
Check the first trip DTC.

Is “P0711” detected? YES >> Go to TM-119, "Diagnosis Procedure".

NO >> GO TO 8.

8.CHECK CVT FLUID TEMPERATURE SENSOR

Turn ignition switch OFF.
Disconnect CVT unit connector.
Check resistance between CVT unit connector terminals.

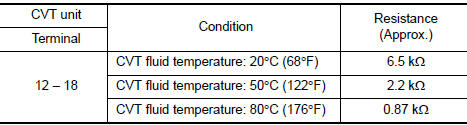

Check CVT fluid temperature sensor

Is the inspection result normal? YES-1 >> To check malfunction symptom before repair: Refer to GI-41, "Intermittent Incident".

YES-2 >> Confirmation after repair: INSPECTION END NO >> There is a malfunction of CVT fluid temperature sensor. Replace transaxle assembly. Refer to TM-220, "Removal and Installation".

Diagnosis Procedure

1.CHECK CVT FLUID TEMPERATURE SENSOR

Turn ignition switch OFF.
Disconnect CVT unit connector.
Check resistance between CVT unit connector terminals.

Is the inspection result normal? YES >> GO TO 2.

NO >> GO TO 4.

2. CHECK CIRCUIT BETWEEN TCM AND CVT UNIT (CVT FLUID TEMPERATURE SENSOR) (PART 1)

Disconnect the TCM connector.
Check continuity between TCM harness connector terminals and CVT unit harness connector terminals.

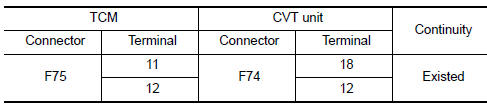

Check circuit between TCM and CVT unit (CVT fluid temperature sensor) (part 1)

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace damaged parts.

3. CHECK CIRCUIT BETWEEN TCM AND CVT UNIT (CVT FLUID TEMPERATURE SENSOR) (PART 2)

Check continuity between TCM harness connector terminals and ground.

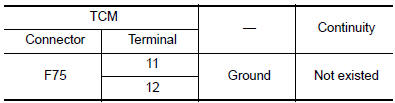

Check circuit between TCM and CVT unit (CVT fluid temperature sensor) (part 2)

Is the inspection result normal? YES >> INSPECTION END

NO >> Repair or replace damaged parts.

4. CHECK DTC (TCM)

With CONSULT

Perform “DTC CONFIRMATION PROCEDURE”. Refer to TM-116, "DTC Description".
Select “Self Diagnostic Results” in “TRANSMISSION”.

Is “P0711” detected? YES >> There is a malfunction of the CVT fluid temperature sensor. Replace the transaxle assembly.

Refer to TM-220, "Removal and Installation".

NO >> INSPECTION END
