Nissan Rogue Service Manual: Moonroof motor assembly
Reference Value
TERMINAL LAYOUT
PHYSICAL VALUES
BCM
List of ECU Reference
...
Sunshade motor assembly
Reference Value

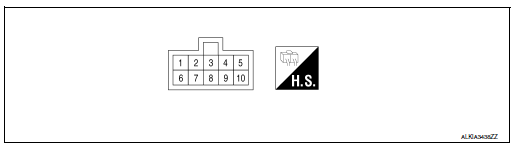

TERMINAL LAYOUT

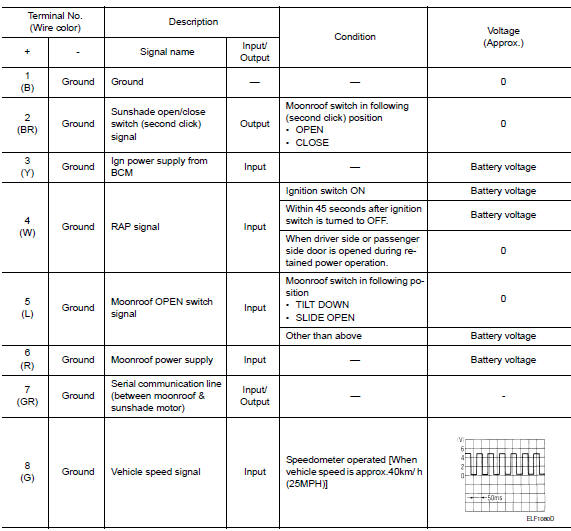

PHYSICAL VALUES
...
