Nissan Rogue Service Manual: Low tire pressure warning lamp blinks
Description
The low tire pressure warning lamp blinks when the power switch is turned ON.

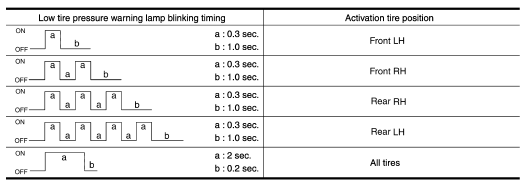

NOTE: The position of an inactive tire pressure sensor can be identified by checking the blinking timing of the low tire pressure warning lamp.
Diagnosis Procedure
1.TIRE PRESSURE SENSOR ID REGISTRATION
Perform tire pressure sensor ID registration. Refer to WT-21, "Work Procedure".
Is tire pressure sensor ID registration completed? YES >> Inspection End.
NO >> Perform the “self-diagnosis” for “AIR PRESSURE MONITOR” of “BCM”. Refer to BCS-48, "DTC Index".
