Nissan Rogue Service Manual: Lifting point
Special service tool
The actual shapes of Kent-Moore tools may differ from those of special
service tools illustrated here.
| Tool number
(Kent-Moore No.)
Tool name |
Description |
| LM4086-0200
( - )
Board on attachment |

|
| LM4519-0000
( - )
Safety stand attachment |

|
CAUTION:
- Every time the vehicle is lifted up, maintain the complete
vehicle curb condition.
- Since the vehicle's center of gravity changes when removing
main parts on the front side (engine,
transmission, suspension etc.), support a jack up point on the rear side
garage jack with a transmission
jack or equivalent.
- Since the vehicle's center of gravity changes when removing
main parts on the rear side (rear axle,
suspension, etc.), support a jack up point on the front side garage jack
with a transmission jack or
equivalent.
- Be careful not to smash or do anything that would affect piping
parts.

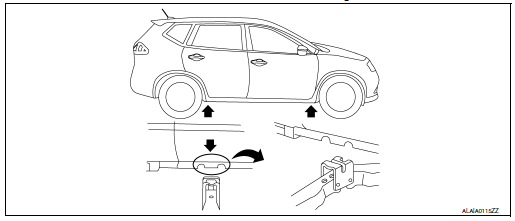

Pantograph jack
WARNING:
- Never get under the vehicle while it is supported only by the
jack. Always use safety stands to support
the frame when you have to get under the vehicle.
- Place wheel chocks at both front and back of the wheels on the
ground

Garage jack and safety stand and 2-pole lift
WARNING:
- Park the vehicle on a level surface when using the jack. Check
to avoid damaging pipes, tubes, etc.
Under the vehicle.
- Never get under the vehicle while it is supported only by the
jack. Always use safety stands when
you have to get under the vehicle.
- Place wheel chocks at both front and back of the wheels on the
ground.
- When lifting the vehicle, open the lift arms as wide as
possible and ensure that the front and rear of
the vehicle are well balanced.
- When setting the lift arm, never allow the arm to contact the
brake tubes, brake cable, fuel lines and
sill spoiler

- Safety stand point and lift up point (front)
- Safety stand point and lift up point
(rear)
- Garage jack point (front)
- Garage jack point (rear) (FWD)
- Garage jack point (rear) (AWD)
CAUTION:
There is canister just behind Garage jack point rear. Jack up carefully.
Board-on lift
CAUTION:
Make sure vehicle is empty when lifting.

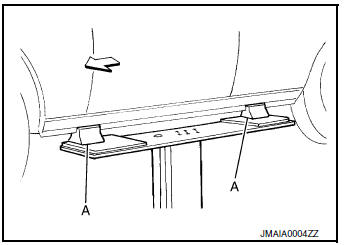

- The board-on lift attachment (A) set at front end of vehicle
should be set on the front of the sill under the front door
opening.
- Position attachments at front and rear ends of board-on lift.

Vehicle front
Description]
