Nissan Rogue Service Manual: Precautions

Description]

Observe the following precautions to ensure safe and proper servicing. These precautions are not described in each individual section.

Precaution for supplemental restraint system (srs) "air bag" and "seat belt pre-tensioner"

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to service the system safely is included in the SR and SB section of this Service Manual.

WARNING:

•  To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision which would result in air bag inflation, all maintenance must be performed by an authorized NISSAN/INFINITI dealer.
•  Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see the SR section.
•  Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.

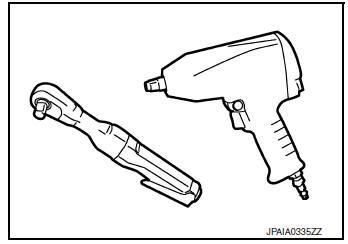

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

•  When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.
•  When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the battery and wait at least three minutes before performing any service.

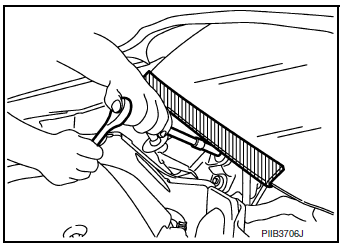

Procedures without cowl top cover

When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc.

Cautions in removing battery terminal and av control unit (models with av control unit)

CAUTION: Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the ignition switch OFF.

NOTE: After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.

Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.

General precautions

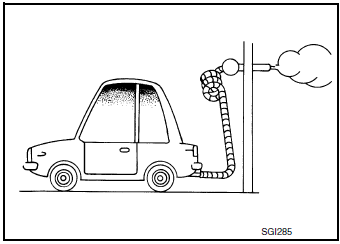

• Do not operate the engine for an extended period of time without proper exhaust ventilation.

  Keep the work area well ventilated and free of any inflammable materials. Special care should be taken when handling any inflammable or poisonous materials, such as gasoline, refrigerant gas, etc. When working in a pit or other enclosed area, be sure to properly ventilate the area before working with hazardous materials.

  Do not smoke while working on the vehicle.

• Before jacking up the vehicle, apply wheel chocks or other tire blocks to the wheels to prevent the vehicle from moving. After jacking up the vehicle, support the vehicle weight with safety stands at the points designated for proper lifting before working on the vehicle.

  These operations should be done on a level surface.

•  When removing a heavy component such as the engine or transaxle/ transmission, be careful not to lose your balance and drop them. Also, do not allow them to strike adjacent parts, especially the brake tubes and master cylinder.

• Before starting repairs which do not require battery power: Turn off ignition switch.

  Disconnect the negative battery terminal.

•  If the battery terminals are disconnected, recorded memory of radio and each control unit is erased.

• To prevent serious burns: Avoid contact with hot metal parts.

  Do not remove the radiator cap when the engine is hot.

•  Dispose of drained oil or the solvent used for cleaning parts in an appropriate manner.
•  Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.

  Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.

•  Clean all disassembled parts in the designated liquid or solvent prior to inspection or assembly.
•  Replace oil seals, gaskets, packings, O-rings, locking washers, cotter pins, self-locking nuts, etc. with new ones.
•  Replace inner and outer races of tapered roller bearings and needle bearings as a set.
•  Arrange the disassembled parts in accordance with their assembled locations and sequence.
•  Do not touch the terminals of electrical components which use microcomputers (such as ECM).

  Static electricity may damage internal electronic components.

•  After disconnecting vacuum or air hoses, attach a tag to indicate the proper connection.
•  Use only the fluids and lubricants specified in this manual.
•  Use approved bonding agent, sealants or their equivalents when required.

• Use hand tools, power tools (disassembly only) and recommended special tools where specified for safe and efficient service repairs.
•  When repairing the fuel, oil, water, vacuum or exhaust systems, check all affected lines for leaks

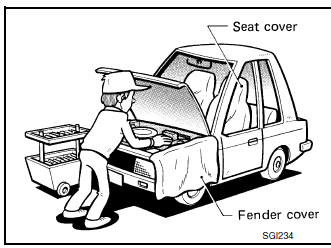

• Before servicing the vehicle: Protect fenders, upholstery and carpeting with appropriate covers.

  Take caution that keys, buckles or buttons do not scratch paint.

WARNING:

To prevent ECM from storing the diagnostic trouble codes, do not carelessly disconnect the harness connectors which are related to the engine control system and TCM (transmission control module) system. The connectors should be disconnected only when working according to the WORK FLOW of TROUBLE DIAGNOSES in EC and TM sections.

Three way catalyst

If a large amount of unburned fuel flows into the catalyst, the catalyst temperature will be excessively high. To prevent this, follow the instructions.

•  Use unleaded gasoline only. Leaded gasoline will seriously damage the three way catalyst.
•  When checking for ignition spark or measuring engine compression, make tests quickly and only when necessary.
•  Do not run engine when the fuel tank level is low, otherwise the engine may misfire, causing damage to the catalyst.

Do not place the vehicle on flammable material. Keep flammable material off the exhaust pipe and the three way catalyst

Fuel (regular unleaded gasoline recommended)

Use unleaded regular gasoline with an octane rating of at least 87 AKI (Anti-Knock Index) number (Research octane number 91). E-85 fuel (85% fuel ethanol, 15% unleaded gasoline) may only be used in vehicles specifically designed for E-85 fuel (i.e. Flexible Fuel Vehicle - FFV models).

CAUTION: Do not use leaded gasoline. Using leaded gasoline will damage the three way catalyst. Do not use E-85 fuel (85% fuel ethanol, 15% unleaded gasoline) unless the vehicle is specifically designed for E-85 fuel (i.e. Flexible Fuel Vehicle - FFV models). Using a fuel other than that specified could adversely affect the emission control devices and systems, and could also affect the warranty coverage validity.

Multiport fuel injection system or engine control system

• Before connecting or disconnecting any harness connector for the multiport fuel injection system or ECM: Turn ignition switch to “OFF” position.

  Disconnect negative battery terminal.

  Otherwise, there may be damage to ECM.

•  Before disconnecting pressurized fuel line from fuel pump to injectors, be sure to release fuel pressure.
•  Be careful not to jar components such as ECM and mass air flow sensor.

Hoses

HOSE REMOVAL AND INSTALLATION

•  To prevent damage to rubber hose, do not pry off rubber hose with tapered tool or screwdriver.

• To reinstall the rubber hose securely, make sure that hose insertion length and orientation is correct. (If tube is equipped with hose stopper, insert rubber hose into tube until it butts up against hose stopper.)

HOSE CLAMPING

•  If old rubber hose is re-used, install hose clamp in its original position (at the indentation where the old clamp was). If there is a trace of tube bulging left on the old rubber hose, align rubber hose at that position.
•  Discard old clamps; replace with new ones.

• After installing plate clamps, apply force to them in the direction of the arrow, tightening rubber hose equally all around.

Engine oils

Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin contact with used oil.

If skin contact is made, wash thoroughly with soap or hand cleaner as soon as possible.

HEALTH PROTECTION PRECAUTIONS

•  Avoid prolonged and repeated contact with oils, particularly used engine oils.
•  Wear protective clothing, including impervious gloves where practicable.
•  Do not put oily rags in pockets.
•  Avoid contaminating clothes, particularly underpants, with oil.
•  Heavily soiled clothing and oil-impregnated footwear should not be worn. Overalls must be cleaned regularly.
•  First aid treatment should be obtained immediately for open cuts and wounds.
•  Use barrier creams, applying them before each work period, to help the removal of oil from the skin.
•  Wash with soap and water to ensure all oil is removed (skin cleansers and nail brushes will help). Preparations containing lanolin replace the natural skin oils which have been removed.
•  Do not use gasoline, kerosene, diesel fuel, gas oil, thinners or solvents for cleaning skin.
•  If skin disorders develop, obtain medical advice without delay.
•  Where practical, degrease components prior to handling.
•  Where there is a risk of eye contact, eye protection should be worn, for example, chemical goggles or face shields; in addition an eye wash facility should be provided.

ENVIRONMENTAL PROTECTION PRECAUTIONS Dispose of used oil and used oil filters through authorized waste disposal contractors to licensed waste disposal sites, or to the waste oil reclamation trade. If in doubt, contact the local authority for advice on disposal facilities.

It is illegal to pour used oil on to the ground, down sewers or drains, or into water sources.

The regulations concerning pollution vary between regions.

Air conditioning

Use an approved refrigerant recovery unit any time the air conditioning system must be discharged. Refer to HA-21, "Description".
